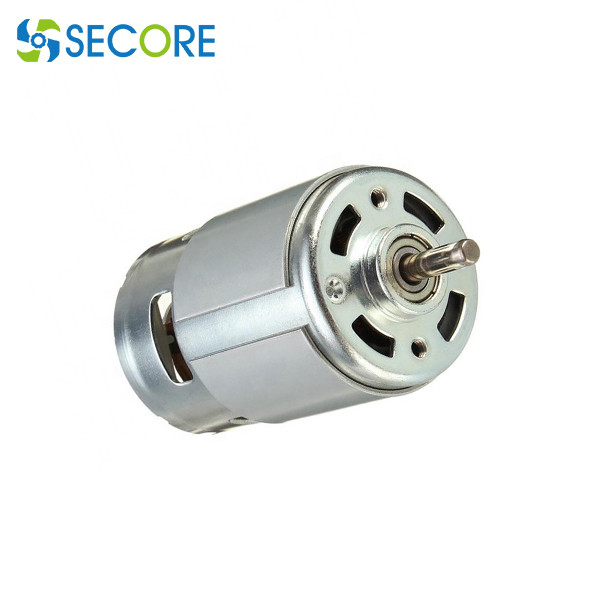

45*66mm Brushed Permanent Magnet DC Motor With Cooling Fan

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	500pcs per carton or as request	Delivery Time :	6-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	China	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	SC775

Detail Information
Product Name:	Brush Commutated Motor	Model Number:	SC-775
Nominal Voltage:	12V	Commutation:	Mechanical Commutating
Motor Dimension:	45mm D * 66mm Length	Shaft Length:	15mm Or As Request
Rated Torque:	3N.m	Application:	Power Tool, Grass Mower, Blender, Mincer

Product Description

45*66mm Brushed Permanent Magnet DC Motor With Cooling Fan For Shredder

Seocre motor Brush motor DC4566 (775 ) Main specification :

45mm Grass Mower Dc Motor, Stainless Steel Enclosed PMDC Motor For Power Tool

The front is ball bearing and back-end is copper

5 groups winding

At a voltage of 12V-24V, large torque, low noise

Output Shaft Diameter: Approxate 5mm
Output Shaft length: Approxate 15mm
Motor Body length: Approxate 66.5mm
Former high level: Approxate 4.7mm
Motor Body diameter: Approxate 42mm
Motor Overall Length: Approxate 98mm
Diagonal installation pitch: Approxate 28.8mm
Mounting hole size: M4
Mounting hole: 2
Cooling fan: Yes
Rated voltage range:12V, 24v (Max. 36v)
Rated Current : 0.16A
Rated Speed: 3000~9000 rpm

Product name	Mechanical commutating brushed dc motor
Casing Material	Stainless steel
Operating Voltage (V DC)	12V, 24V, 36V
Rated Speed (RPM)	3000-9000 as request
Motor Sizes	42mm*66mm
Shaft diameter	5mm approx or as request
Shaft length	15mm approx or as request
Motor overall length	98mm approx
Rated current	0.16A
Windings	5 groups

45*66mm Brushed Permanent Magnet DC Motor With Cooling Fan 0

Typical application:
