Product Description

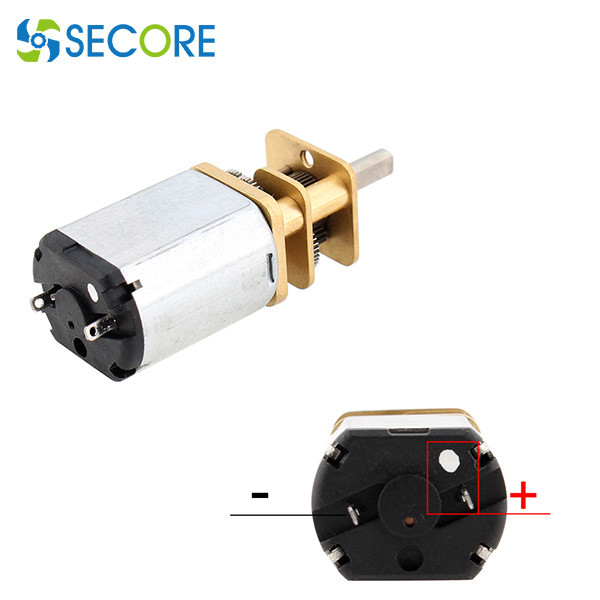

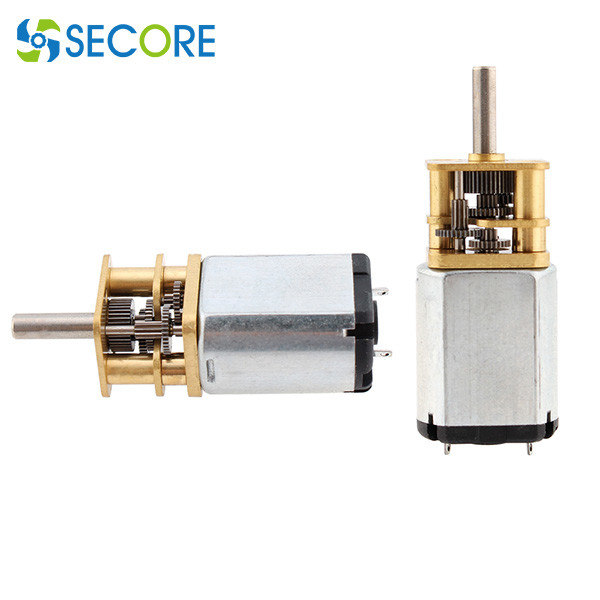

DC3V 6V 9V 12V Low Power Door Lock Motor Mini Reduction 13mm 100rpm Geared Motor
Main features:
Motor type: Brush commutated DC gear motor
Diameter: Gearbox: 12mm*13mm *29.6mm
|
Volt
|
12V
|
|
No-Load Speed
|
115rpm
|
|
Rated Speed
|
100rpm
|
|
Rated Torque
|
750g.cm
|
|
Application
|
lottery machine, door lock, electric locking
|
Gear motor dimensions:
Motor Technical parameters:
1. Rated Voltage: DC3V to12V
2. Speed No load: 50 to 1800RPM to be customized
3. Reduction Ratio:1/10~360
5. Application: Door lock, robot,lock,Auto shutter,USB fan,Slot machine,Money detector, Coin refund devices,Currency count machine, Towel dispensers,Automatic TV rack etc.
| DC12V, max 1.5W input power 18000rpm SC13-030GM |
| Reduciton ration |
1:10 |
1:20 |
1:35 |
1:63 |
1:86 |
1:115 |
1:150 |
1:250 |
1:360 |
| No-load current mA |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
| No-load speed r/min |
1750 |
880 |
500 |
280 |
205 |
155 |
115 |
70 |
50 |
| Rated torque g.cm |
50 |
100 |
170 |
300 |
400 |
550 |
750 |
1250 |
1800 |
| Rated speed r/min |
1450 |
730 |
420 |
230 |
170 |
125 |
100 |
58 |
40 |
| Rated current A |
0.16 |
0.16 |
0.16 |
0.16 |
0.16 |
0.16 |
0.16 |
0.16 |
0.16 |
| Stall torque kg.cm |
0.3 |
0.6 |
1 |
2 |
2.5 |
max torque 3.0kg.cm ( 0.3N.m ) |
| Stall current A |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.
Motor solution in Areas of expertise:
Windows or doors electric locks, micro hoist, Garbage disposal, water IC CARDS, toys and gifts, figer - electronic locks, optical devices, Card machine, robot, towel machine, office equipment, household appliances, automatic actuator,etc.
Motor Use Needs to know>>
1. When you use the motor, there should be no binding objects. For example, the adhesive should not flow into the bearing through the rotating shaft, which will hinder the operation of the motor.
2. The rotation of the shaft may have the opposite effect on the life of the motor. In order to extend the life, please check whether your load conforms to the regulations.
It should not be overloaded, or there are items that hinder rotation at the end of the shaft.
3. Do not store in surrounding high temperature or extreme humidity, and do not place in corrosive gas, which will reduce the effect of the motor.
4. Do not run the motor in the surrounding high temperature and humidity
5. When soldering is required on the positive and negative motor terminals of the power supply, the temperature of the soldering iron should be 340℃±40℃, and the heating time should be within 3 seconds.
6. Don't let the motor shaft get stuck. When power is supplied, the motor will overheat in a short time and its accessories might be burned.
7. Due to the lack skills of the staff, the quality of the motor cannot be guaranteed when the motor encounters the things mentioned in the manual, or the superficial judgment is obviously fault.
8. Supply the specified power and be sure that it is within the range of measurable requirements.
9. The installation of pulleys or gears should not be abnormally aggravated when pressed in
10. When installing the motor, if the screw is too long, it will cause contact between the motor itself and the rotor, which will affect the characteristics.
