120RPM DC Planetary Gear Motor Wear Resistant 6V For Smart Lock

Contact Now

120RPM DC Planetary Gear Motor Wear Resistant 6V For Smart Lock

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	500pcs per carton or as request	Delivery Time :	12-20 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	ISO9001	Model Number:	SC16-030

Detail Information
No-load Speed:	120RPM	Rated Voltage:	6V
Rated Torque:	0.166kg.cm	Rated Current:	0.128A
Rated Speed:	100rpm	BDC Motor Size:	12*15.5 Mm
Gearbox Size:	11*15.5mm	Motor Type:	Brush Worm Gear Motor
Product Name:	Mini Bdc Gear Motor, High Accuracy Gear Motor	Typical Application:	Electric Lock, Intelligent Lock, Automatic Equipment
High Light:	Wear Resistant DC Planetary Gear Motor , 120RPM DC Planetary Gear Motor , Smart Lock Bdc Gear Motor

Product Description

High accuracy Micro16mm DC Gear Motor, 6V Smart Lock Electronic Lock Motor With All Metal Gearbox

Main features:

- Voltage: 6V

- Size: φ12*15.5mm motor --15.5*11mm gearhead

- Shaft diameter: 3mm

- Shaft length: 9.5mm

VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				STALL		Weight
RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	Output	TORQUE	CURRENT	Weight
VDC	±10% r/min	A	±10% r/min	A	kg.cm	W	kg.cm	A	g
6.0	340	0.048	293	0.108	0.05	0.15	0.28	0.525	19
6.0	230	0.048	200	0.123	0.09	0.18	0.42	0.525	19
6.0	120	0.048	100	0.128	0.166	0.19	0.8	0.525	19
6.0	80	0.048	67	0.14	0.27	0.19	1.2	0.525	19
6.0	50	0.048	29	0.255	0.46	0.14	2	0.525	19
6.0	33	0.048	26	0.142	0.59	0.16	2.9	0.525	19

Motor mounting sizes:

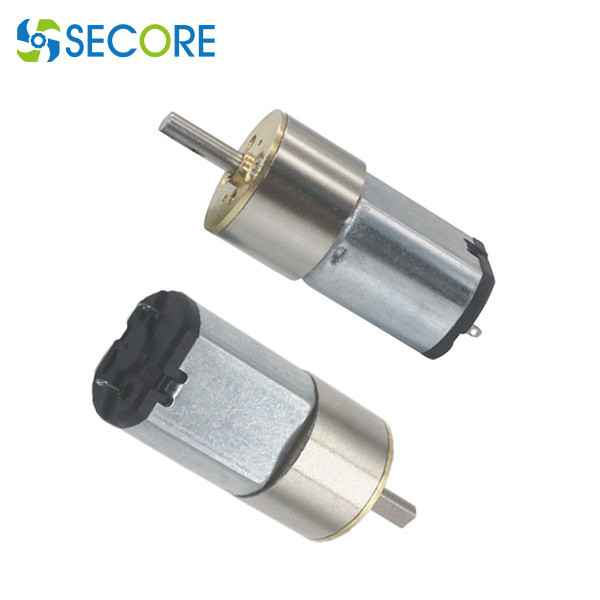

120RPM DC Planetary Gear Motor Wear Resistant 6V For Smart Lock 0

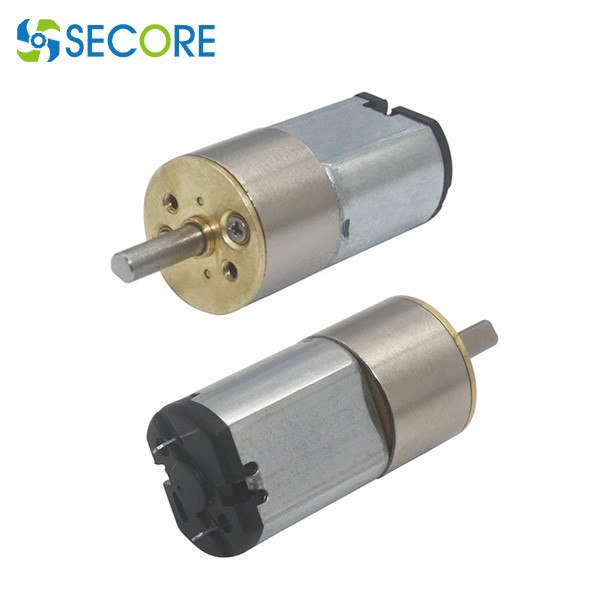

120RPM DC Planetary Gear Motor Wear Resistant 6V For Smart Lock 1

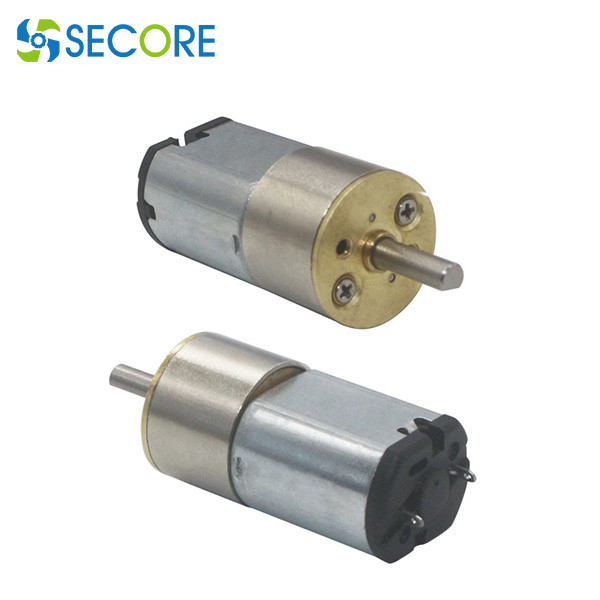

120RPM DC Planetary Gear Motor Wear Resistant 6V For Smart Lock 2

Motor features

All metal gear material

The motor uses all metal gear material, which makes it more wear-resistant and longer life period.

Pure copper wire winding

It uses high accuracy one time molding rotor. High quality material, high electrical conductivity, stable running, high temperature resistance.

D shaft

D type shaft, more convenient to install, not easy to slip.

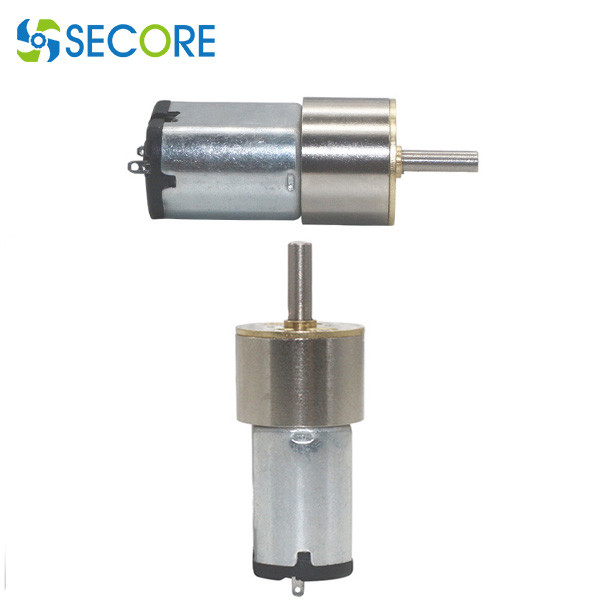

120RPM DC Planetary Gear Motor Wear Resistant 6V For Smart Lock 3
