32mm Mini Vibration Brush Dc Motor With Dual Round-Shape Shaft Low Noise

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: SC250

Detail Information

Speed: 4700rpm 7900rpm Or Customized Diameter * Length: 33*22mm
Construction: Pernanent Magnet Output Power: 2.6W
Typical Application: Treadmill, Medical Atomizer, Water Flosser, Air Pump, Valve Motor Type: Mini Vibration Massage Motor
Shaft Shape: Dual/single D-shape, Dual/single O-shape Bearing: Ball Bearing Or Oil Bearing
High Light:

2.6W Massager Motor

,

Dual Round Shaft Massager Motor

,

Mini Vibration Brush Dc Motor

Product Description

32mm Mini Vibration Brush Dc Motor With Dual Round-Shape Shaft For Massager



Key parameters cases:



•Model: SC250
•Voltage: 6V 12V
•Torque: 2.2mN.m-3.186mN.m
•Power:  1-2.6W
•Speed: 5500-9100RPM

•Low Noise, long life, high durability





Model number Operating range VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
RATED SPEED CURRENT SPEED CURRENT TORQUE Output TORQUE CURRENT
VDC VDC ±10% r/min A ±10% r/min A mN.m W mN.m A
SC-520C-20214 4.0-7.0 6 5500 0.054 4730 0.326 2.2 1.087 15.689 2
SC-520C-15262 9.0-13.0 12 9100 0.061 7917 0.404 3.186 2.639 24.5 2.7

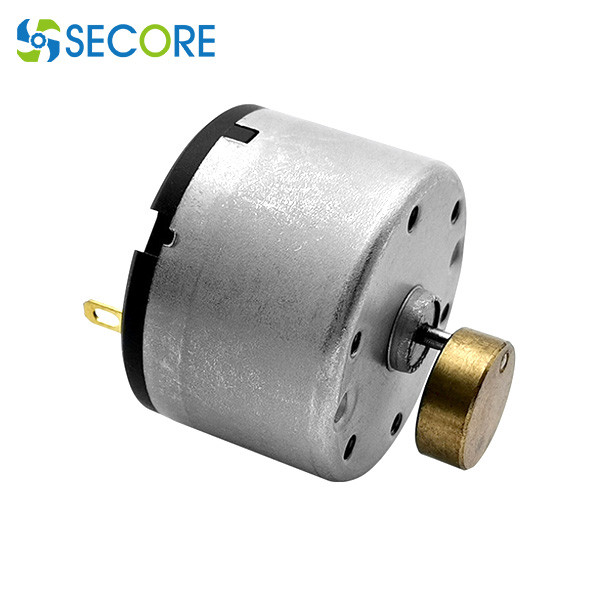

32mm Mini Vibration Brush Dc Motor With Dual Round-Shape Shaft Low Noise 0

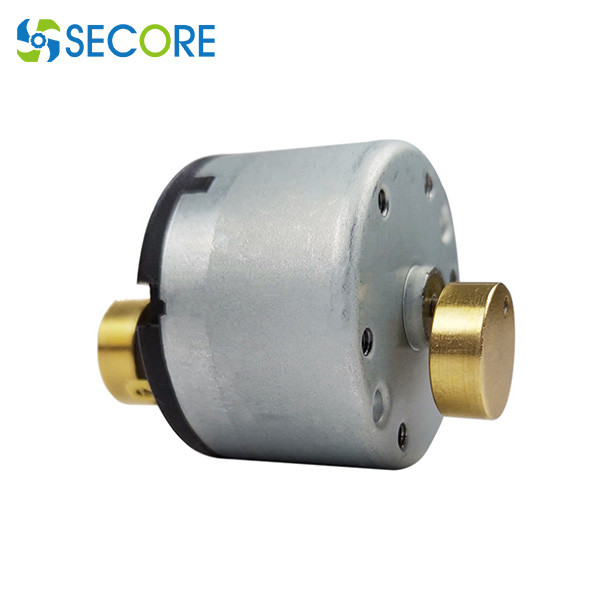

32mm Mini Vibration Brush Dc Motor With Dual Round-Shape Shaft Low Noise 1
