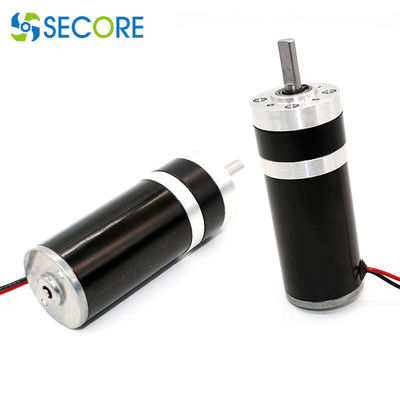

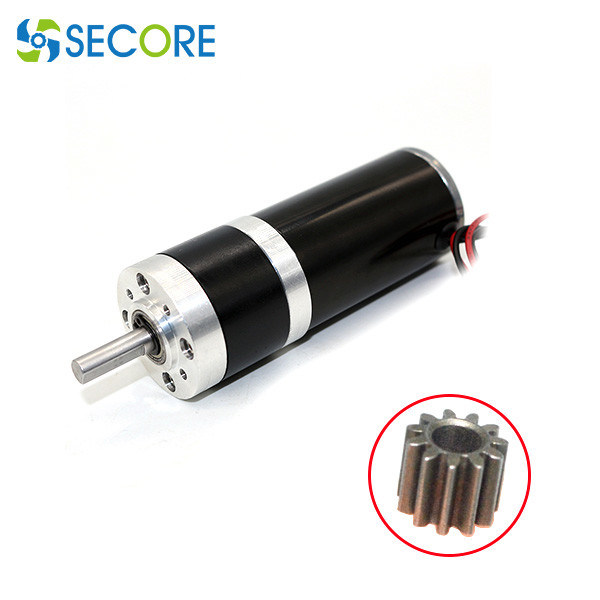

30rpm DC Planetary Gear Motor Large Torque 32mm Reducer For Robot
30rpm DC Planetary Gear Motor Large Torque 32mm Reducer For Robot 30rpm DC Planetary Gear Motor Large Torque 32mm Reducer For Robot 30rpm DC Planetary Gear Motor Large Torque 32mm Reducer For Robot 30rpm DC Planetary Gear Motor Large Torque 32mm Reducer For Robot
Contact Now

30rpm DC Planetary Gear Motor Large Torque 32mm Reducer For Robot

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: ISO9001 Model Number: SC3158-GB

Detail Information
Rated Speed: 30rpm Or Other Options Rated Voltage: 12V
Rated Torque: 19kg.cm Or As Request Motor Dimension: 31*58mm
Gear Motor Weight: 320g Keyword: 31mm 30rpm Planetary Gear Motor
Typical Application: Window Opener, Robot, Automatic Device Reducer Sizes: 32mm Diameter * Optional Length
High Light:

30rpm DC Planetary Gear Motor

,

Robot DC Planetary Gear Motor

,

32mm Reducer Planetary Gearbox Motor

Product Description

Durable Window Opener Planetary Gear Motor 31mm With Low Speed And Large Torque



Main features:



SC3158 MOTOR PARAMETERS:



Model number VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
RATED SPEED CURRENT SPEED CURRENT TORQUE Output TORQUE CURRENT
VDC ±10% r/min A ±10% r/min A g.cm W g.cm A
SC-3158-GB 12 8000 0.25 6900 1 0.06 4.3 900 6
SC-3158-GB 24 8000 0.15 6900 0.5 0.12 8.6 1000 3.5




SC3158-12GB GEAR MOTOR PARAMETERS:



12V GEAR MOTOR PARAMAETERS
gear ratio 3.4 4.6 11.2 15.5 21.5 37.7 52.1 72.1 99.6 126.4 174.7 241.6 334.1 461.9
no-load Speed ( rpm ) 2386 1726 712 515 372 212 153 111 80 63 46 33 24 17
no-load current ( A ) 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
rated Speed ( rpm ) 1786 1361 580 417 312 181 136 94 73 52 40 31 20 16
rated Torque (kg.cm ) 0.52 0.56 1.33 2.05 2.3 4.2 5 7.13 8.35 14.5 14.9 19.8 32.6 33.1
rated current ( rpm ) 1.83 1.4 1.42 1.48 1.31 1.33 1.05 1.17 1.18 1.61 1.34 1.14 1.51 1.18
stall current (A) 5.78 5.17 6 5.49 5.66 5.77 5.76 5.32 5.43 5.42 no stalling allowed
stall torque (kg.cm) 2 2.5 5.7 7.8 10 20 27.28 35 47 54
L length mm 23.2 29.8 36.4 43
weight g 230 260 290 320





30rpm DC Planetary Gear Motor Large Torque 32mm Reducer For Robot 0



30rpm DC Planetary Gear Motor Large Torque 32mm Reducer For Robot 1



30rpm DC Planetary Gear Motor Large Torque 32mm Reducer For Robot 2
