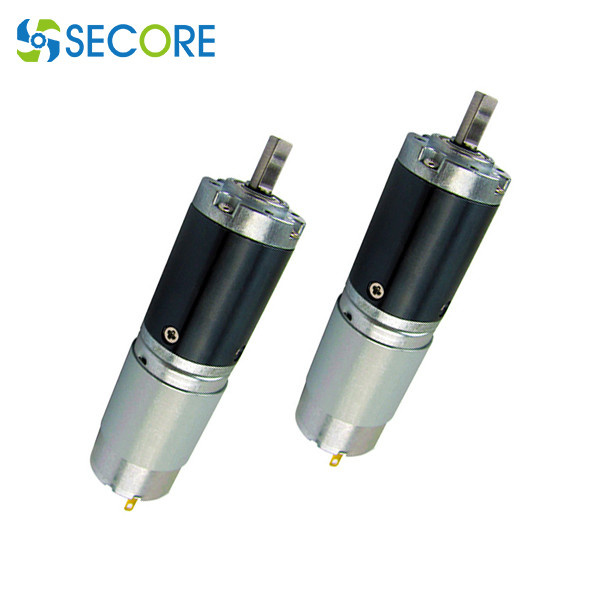

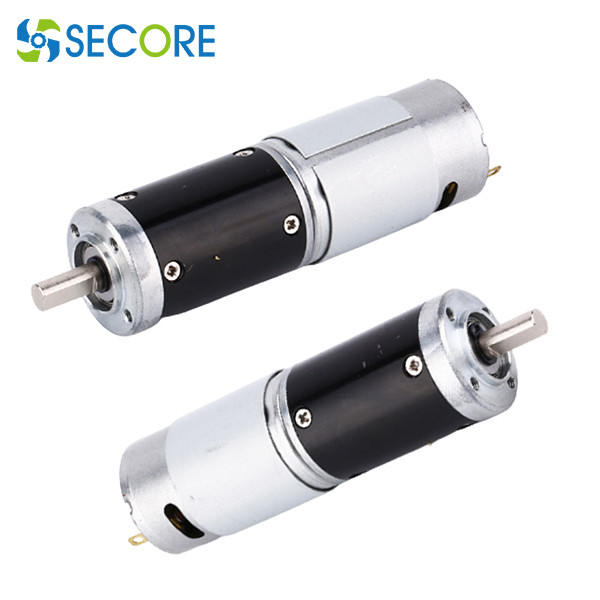

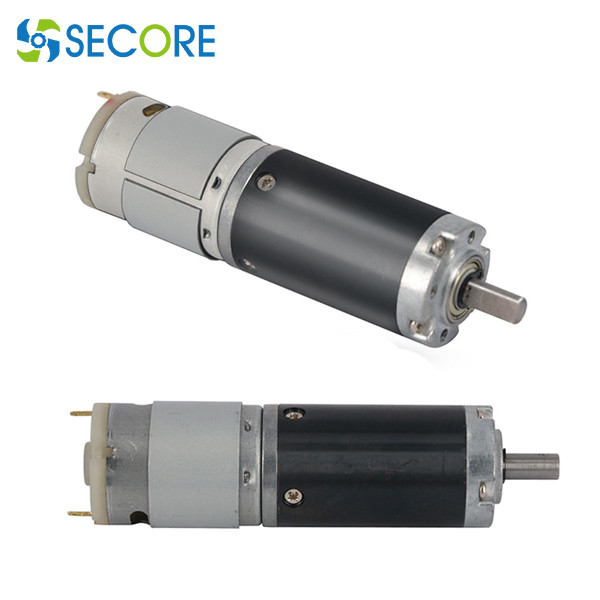

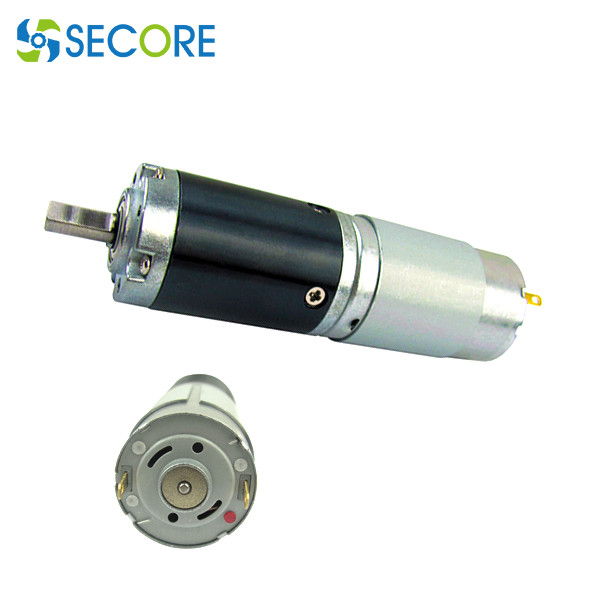

2.5W 21rpm Dc Planetary Gear Motor 24v 29mm Window Opener Scarcely

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC395-GB

Detail Information

No Load Speed: 2100rpm Rated Speed: 21rpm
Rated Voltage: 24V Output Power: 2.5W
Rated Torque: 6kg.cm Motor Dimension: 29*46.5mm /395 Motor
Keyword: 21rpm Dc Gear Motor, 395 Planetary Geared Motor Typical Application: Medical Device, Personal Care, Power Tool, Window Opener
High Light:

2.5W Dc Planetary Gear Motor

,

21rpm Dc Planetary Gear Motor

,

Scarcely Noise Electric Gear Motor

Product Description

24v Dc Planetary Gear Motor 29mm Small Electric Window Opener Gear Motor



Motor parameters:



Motor Model number RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY Output Power STALL
SPEED CURRENT SPEED TORQUE CURRENT TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm A W g.cm A
DC-395 12 3000 80 2100 100 0.45 2.2 330 1.02
DC-395 12 4500 120 3600 100 0.69 3.77 510 2.4
DC-395 12 6000 160 5200 100 0.93 5.45 720 4.5
DC-395 24 3000 50 2100 90 0.2 1.98 248 0.42
DC-395 24 4500 60 3480 90 0.2 3.28 440 0.98
DC-395 24 6000 70 5000 100 0.43 5.24 660 1.73


Gearbox parameters:

Stage 1 2 3 4
Reduction ratio 3.7, 5.2 14, 19, 27 51, 71, 100, 139 189, 264, 369, 515, 721
gearhead length L 37.5 35.5 43.5 51.5
gearhead efficiency 89% 81% 73% 65%


Output torque of gear motor: output torque of motor x reduction ratio x gearbox efficiency;

Output speed of gear motor: output speed of motor reduction ratio.



Gear motor mounting sizes:



2.5W 21rpm Dc Planetary Gear Motor 24v 29mm Window Opener Scarcely 0







How to choose the suitable motor?

1. voltage: determine the working condition of the motor application

2. speed: the revolution per minute you need running at the rated voltage

3. torque: how much N.m you need at the rated voltage, how much N.m you need when it stops running

4. size restriction: dimensions of your mounting space

5. output shaft: it can be customized as per different installation requests, shaft diameter, length, threaded shaft, D shaft, dual flat shaft, single flat shaft, spring shaft, keyway shaft etc.
