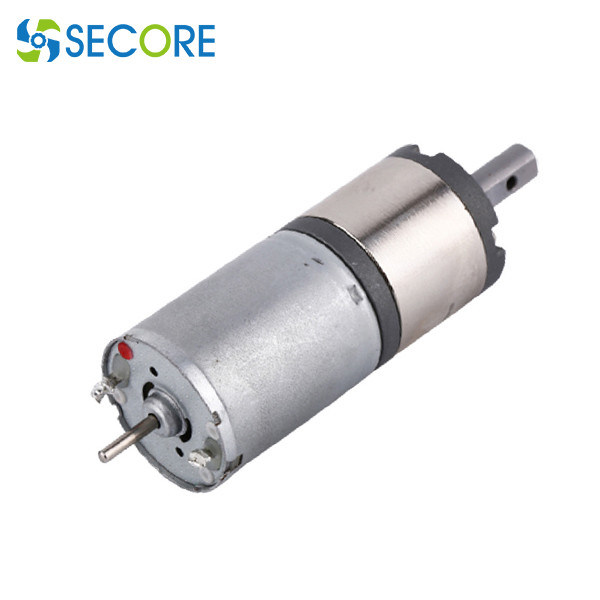

Encoder 24mm Planetary Gear Motor 12 Volt Ball Bearing For Robot

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC370-GB

Detail Information

No Load Speed: 56rpm Rated Voltage: 12V
Output Power: 2.1W Rated Torque: 2.7kgf.cm
Motor Dimension: 24*30.8mm /370 Motor Rated Speed After Reduction: 23rpm
Keyword: 23rpm Dc Gear Motor, 370 Planetary Gear Motor Typical Application: Robot, Kids Toy, Electric Car Toy, Medical Bed, Automation
High Light:

24mm Planetary Gear Motor

,

Encoder Planetary Gear Motor

,

Robot Dc Reduction Gear Motor

Product Description

24mm 12 Volt Planetary Gear Motor With Encoder For Robot



Motor parameters:



Motor Model number RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY Output Power STALL
SPEED CURRENT SPEED TORQUE CURRENT TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm A W g.cm A
DC-395 12 3000 20 2500 15 0.08 0.4 67 0.25
DC-395 12 4500 35 3300 25 0.15 0.8 114 0.55
DC-395 12 6000 50 4500 35 0.22 1.6 166 0.98





Gearbox parameters:





Stage 1 2 3 4 5
Reduction ratio 3.5, 4, 4.78 16, 22.5 64, 79, 107 204, 256, 361, 509 1024, 2418
gearhead length L (mm) 14.9 19.4 23.9 28.4 32.9
breaking torque (kgf.cm) 4 6 8 10 10
gearhead efficiency 89% 81% 73% 65% 59%%


Output torque of gear motor: output torque of motor x reduction ratio x gearbox efficiency;

Output speed of gear motor: output speed of motor / reduction ratio.



Gear motor mounting sizes:





Encoder 24mm Planetary Gear Motor 12 Volt Ball Bearing For Robot 0





Producing motors:



Encoder 24mm Planetary Gear Motor 12 Volt Ball Bearing For Robot 1



Encoder 24mm Planetary Gear Motor 12 Volt Ball Bearing For Robot 2



Encoder 24mm Planetary Gear Motor 12 Volt Ball Bearing For Robot 3



QUESTIONS & ANSWERS



Q: To customize the motor, what information should be provided?
A: You need to offer the specification of the motor like expected sizes, rated voltage, speed, torque, shafts. It'll be great if the drawing is available.



Q: What’s your main motors?
A: Various diameter options for DC Micro Brush Motor, brushless and Gear Motor. Tiny Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, DC Brushless Motor, Worm gear motor, Spur Gear Motor, Micro Motor, planetary motor, Vibration Motor, coin motor Etc.

Brushed Motor

Brushless Motor (BLDC motor)

Coreless brush & Coreless Brushless

Planetary Gear Motors

Spur Gear Motors

Worm Gear Motor



Q: What’s the main application of the micro dc motor?
A: Our DC motors are widely applied in precision instrument,financial equipment, medical devices, audio and visual equipment, industrial automation and secure, banking and vending system, home and office automation, automatic door system, medical device, personal care, power tool, smart household appliances, kitchen appliances, auto parts, RC Drone, industry apparatus, consumer electronics, kids toys,electric water valves, robots, Fascia Massague Gun etc.
