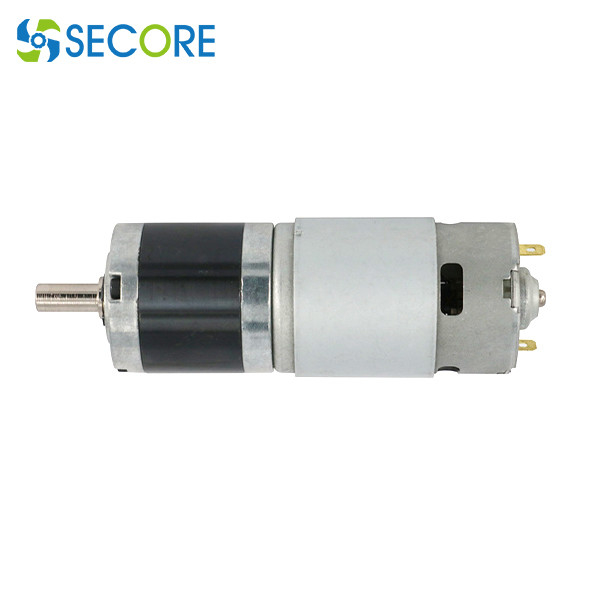

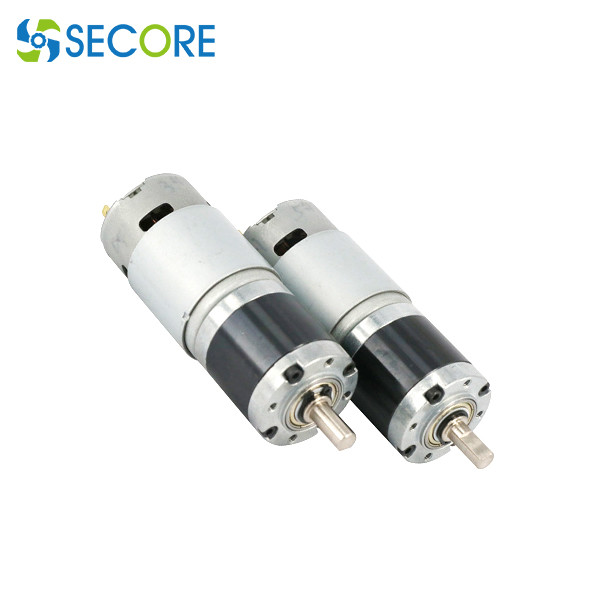

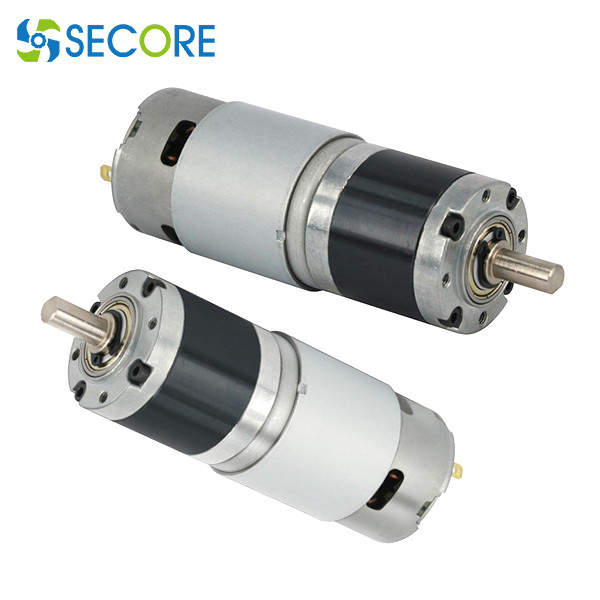

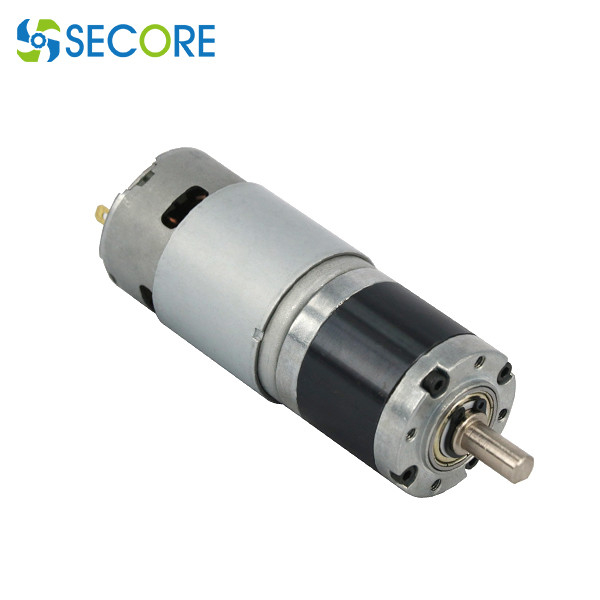

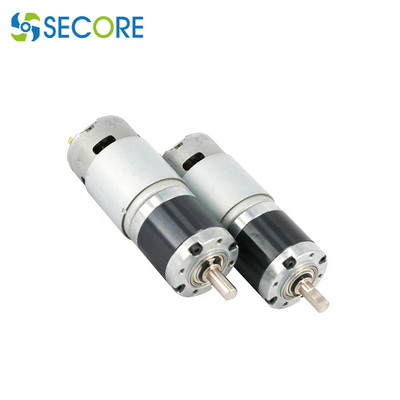

42mm Planetary Gear Reducer Motor 16.5W Home Sweeper High Torque

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC775-GB

Detail Information

No Load Speed: 25rpm Rated Voltage: 12V
Output Power: 16.5W Rated Torque: 5.8N.m
Motor Dimension: 42*66mm / 775 Motor Rated Speed After Reduction: 18rpm
Keyword: 18rpm Dc Brush Gear Motor, 42mm Planetary Gear Motor Typical Application: Smart Home, Sweeper, Kids Toy, Electric Car Toy, Medical Bed, Automation
High Light:

42mm Planetary Gear Reducer Motor

,

16.5W Gear Reducer Motor

,

Home Sweeper High Torque Gear Motor

Product Description

42mm Planetary Gear Reducer Motor Smart Home Sweeper Brush Gear Motor High Torque



Motor parameters:

Motor Model number RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED TORQUE CURRENT Out. Power TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm A W g.cm A
SC-775 12 3000 222 2200 350 1 7.7 1400 3.5
SC-775 12 4500 451 3300 500 2 16.5 2000 6.5
SC-775 12 6000 900 4500 750 4 34.5 3000 13
SC-775 24 3000 110 2200 350 0.5 7.7 1400 1.8
SC-775 24 4500 230 3300 500 1 16.5 2000 3.3
SC-775 24 6000 450 4500 750 2 34.5 3000 7



Gearbox parameters:



Reduction Stage 1 2 3 4
Reduction ratio 3.7, 5 13, 18, 25 49, 67, 92, 125 181, 336, 458
gearhead length L (mm) 33.5 43.5 53.5 63.5
gearhead efficiency 89% 81% 73% 65%


Output speed of gear motor: output speed of motor / reduction ratio.
Output torque of gear motor: output torque of motor x reduction ratio x gearbox efficiency;



Gear motor mounting sizes:



42mm Planetary Gear Reducer Motor 16.5W Home Sweeper High Torque 0



Advantages of Planetary gearbox



1) Low cost. The use of tooth extraction technology simplifies the structure of the planetary reducer. The pin ring structure of the same power and different transmission ratios is the same. The product can be mass-produced. At the same time, the processing technology of key components is good, and no special equipment and superb skills are required. General-purpose locomotives can be processed and manufactured, and the manufacturing cost is low;


(2) High efficiency. The pin-ring planetary reducer realizes rolling meshing, with low friction loss, reasonable load distribution of multi-tooth meshing of the pin-ring cycloid meshing pair, and high transmission efficiency of the whole machine;



(3) High bearing capacity. The planetary structure of the planetary reducer is adopted to realize self-adaptation, so that each pair of meshing pairs participating in the meshing can be evenly loaded, so that the average load on a pair of meshing pairs is reduced, thereby improving its load-bearing capacity and impact resistance;


(4) Smooth transmission and low noise. The mass of the pin ring is small. After the arm bearing is selected according to the strength requirements, the inertial force balance is realized, so the transmission is stable and the noise is low.
