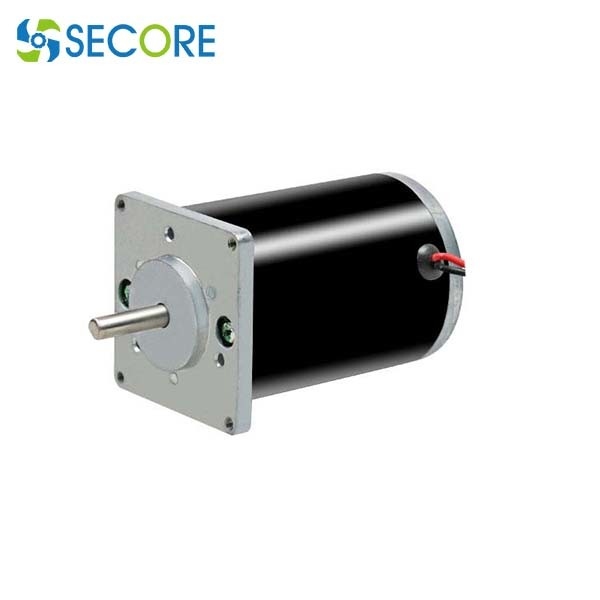

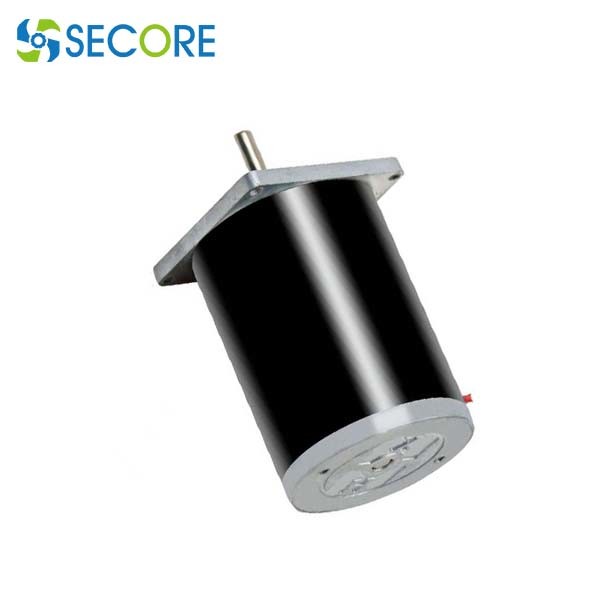

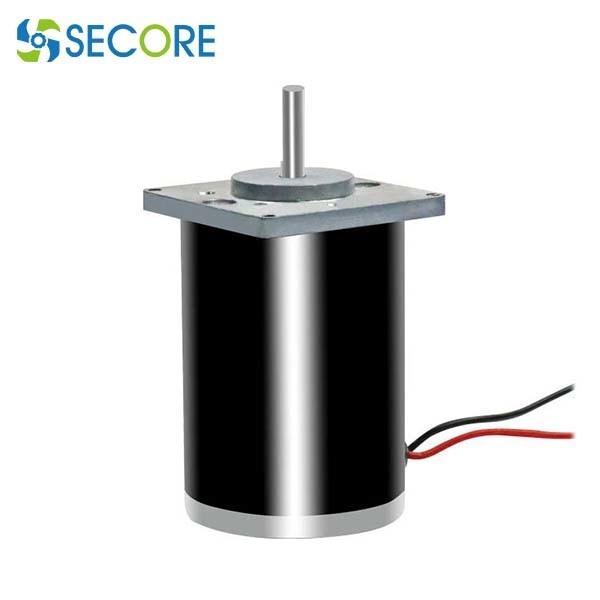

OD58mm 37W Carbon Brushed Permanent Magnet Dc Motor For Treadmill

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 9-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: ISO9001 Model Number: DC5892

Detail Information

Product Name: 38W High Power DC Brush Motor Model Number: DC5892
Nominal Voltage: 12V 24V No Load Speed: 9000rpm
Rated Speed: 7200rpm Rated Torque: 1.56kg.cm /0.16N.m
Output Power: 37W Commutating: Carbon Brush / Machenical
Motor Size: OD58mm * L92mm Application: Electric Door, Fitness Machine, Treadmill
High Light:

Carbon Brushed Permanent Magnet Dc Motor

,

OD58mm Brushed Permanent Magnet DC Motor

,

38W high power DC Brush motor

Product Description

OD58mm Steel Tube Door Motor 12V24V Carbon Brush Commutating Motor With Industrial Grade Material

Main specification cases:

Model Number: DC5892
Voltage range: DC 12V, 24V
High Speed: 4000rpm to 9000rpm , or tailor-made
Features: High speed, high torque, steady running, low noise



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY AT MAXIMUM POWER STALL
SPEED
RPM
CURRENT
A
SPEED
RPM
TORQUE
kgf.cm
CURRENT
A
SPEED
RPM
TORQUE
kgf.cm
POWER
W
TORQUE
kgf.cm
CURRENT
A
DC-5892 12 4000 0.3 3200 1.37 1.3 2400 2.14 30.6 3.2 5.513
DC-5892 24 9000 0.4 7200 1.56 1.5 5400 2.37 56.88 3.61 6.54

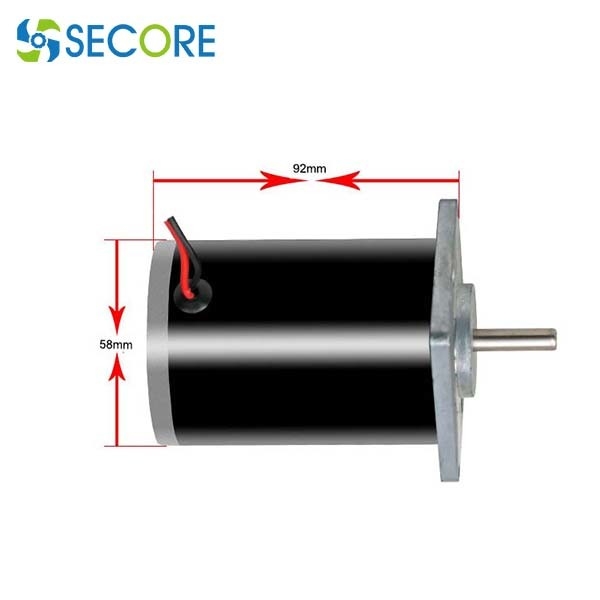

Motor dimensions

 OD58mm 37W Carbon Brushed Permanent Magnet Dc Motor For Treadmill 0



Application cases



OD58mm 37W Carbon Brushed Permanent Magnet Dc Motor For Treadmill 1







What technical specifications are needed for the motor?


1. the power, torque and speed of the motor are needed;
2. you must know the size of the motor, how to install it (how to fix it in the system?).
3. the industrial environment in which the motor operates must also be considered: each environment (explosion, humidity, corrosion, high and low temperatures, etc.) has a different design.


For harsh environments, a waterproof, dustproof and shockproof enclosure needs to be added to the motor.
