OD 63mm Anti Rust 7000rpm 10KG High Torque Brush DC Motor With Encoder For Gym Equipment
OD 63mm Anti Rust 7000rpm 10KG High Torque Brush DC Motor With Encoder For Gym Equipment OD 63mm Anti Rust 7000rpm 10KG High Torque Brush DC Motor With Encoder For Gym Equipment OD 63mm Anti Rust 7000rpm 10KG High Torque Brush DC Motor With Encoder For Gym Equipment OD 63mm Anti Rust 7000rpm 10KG High Torque Brush DC Motor With Encoder For Gym Equipment
Contact Now

OD 63mm Anti Rust 7000rpm 10KG High Torque Brush DC Motor With Encoder For Gym Equipment

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 9-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: ISO9001 Model Number: DC6388

Detail Information
Product Name: 10KG High Torque DC Brush Motor Item Number: DC6388
Nominal Voltage: 12V 24V No Load Speed: 8900rpm
Rated Speed: 7100rpm Rated Torque: 1.1kg.cm /0.11N.m
Output Power: 25.6W Commutating: Carbon Brush / Machenical
Motor Size: OD63mm * L88mm Application: Fitness Machine, Treadmill, Gym Device
High Light:

10KG High Torque Brush DC Motor

,

OD 63mm brushed dc electric motor

,

Anti Rust 7000rpm dc brushed motor

Product Description

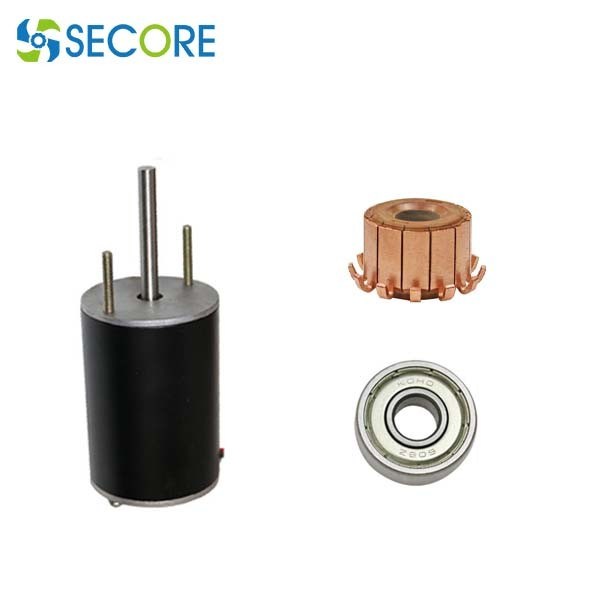

OD 63mm Anti-Rust 7000rpm 10KG High Torque Brush Dc Motor With Encoder For Gym Equipment

Main specification cases:

Model Number: DC6388
Voltage range: DC 12V, 24V, 48V
High Speed: 5000rpm to 8900rpm , or tailor-made
Features: High speed, high torque, steady running, low noise



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY AT MAXIMUM POWER STALL
SPEED
RPM		 CURRENT
A		 SPEED
RPM		 TORQUE
gf.cm		 CURRENT
A		 SPEED
RPM		 TORQUE
gf.cm		 POWER
W		 TORQUE
gf.cm		 CURRENT
A
DC-6388 12 8900 0.3 7100 1100.7 2.13 5340 3227 63 3657 9.5
DC-6388 24 5000 0.22 4000 1370 1.45 3000 3617 102.5 3816 7.54



Motor dimensions
 OD 63mm Anti Rust 7000rpm 10KG High Torque Brush DC Motor With Encoder For Gym Equipment 0



Performance Curve



OD 63mm Anti Rust 7000rpm 10KG High Torque Brush DC Motor With Encoder For Gym Equipment 1



Application cases



OD 63mm Anti Rust 7000rpm 10KG High Torque Brush DC Motor With Encoder For Gym Equipment 2





Advantage:


Easy to control, a single controller can control multiple motors;
High starting torque and high torque at low speed;
cheap economy;

Suitable for rotary machines, elevators, baggage conveyors, centrifugal pumps and compressors.





Tag:

high volt Brushed Permanent Magnet DC Motor

low voltage PMDC Motor

brushed dc motor 5v to 220v
