Precious Metal Brush DC Motor Permanent Magnet Soap Dispenser Brush Motor 6V 12V 24V

Minimum Order Quantity : 200 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 7-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: DC2430 / 370

Detail Information

Working Voltage: 12V Motor Dimension: 24.4*30.8mm
Rated Torque: 24 G.cm Rated Speed: 4800rpm Or Customized
Protection: Drip-proof Item Type: Brushed Motor, Miniature Precious Metal Motor
Commutation: Mechanical Commutation, Brush Commutator Application: Soap Dispenser, Water Pumping, Valve
High Light:

Precious Metal Brush Dc Motor

,

4800rpm Brush Dc Motor

,

Soap Dispenser permanent magnet DC motor

Product Description

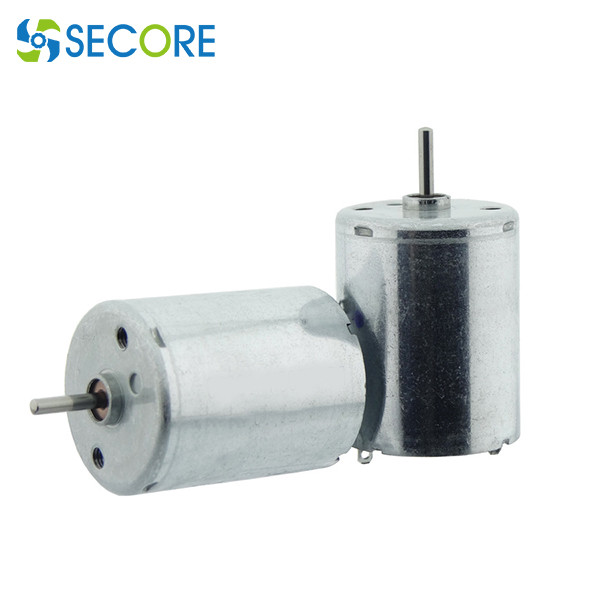

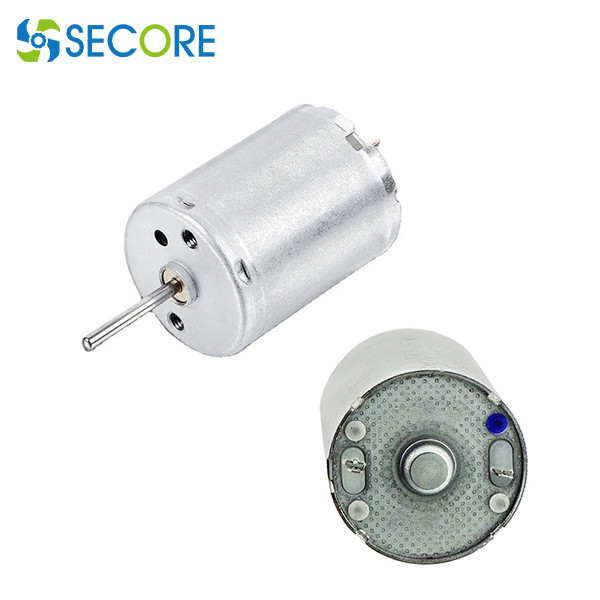

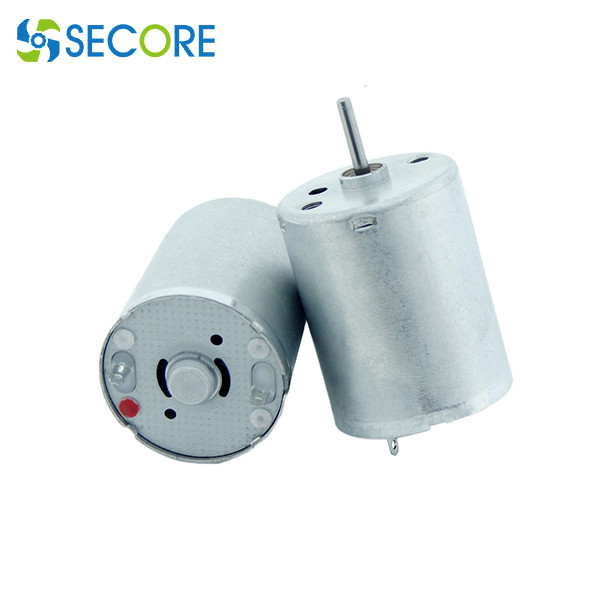

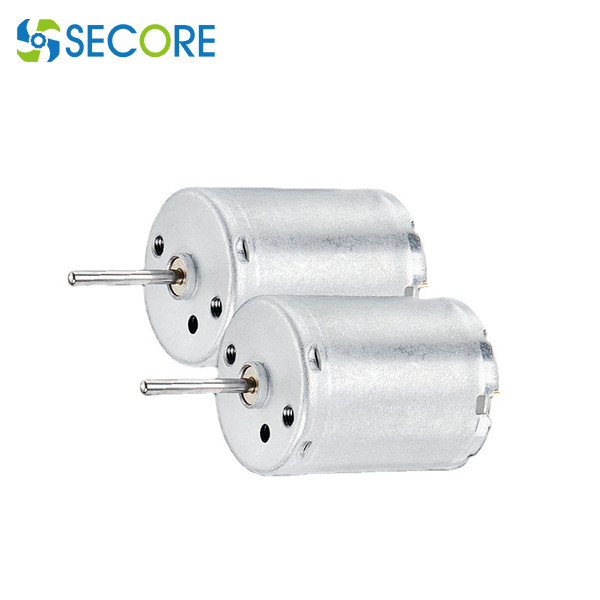

Custom Made Soap Dispenser Brush Motor 6V12V 24V Precious Metal Brush Dc Motor



Secore brush dc motor



Motor model: DC2430 / 370
Working Voltage range: low voltage 6V 8V 12V 24v
Output Power: 0.05W~0.1W
High Speed: 2000RPM~7000RPM
Features: Tiny Size; Low Noise; High Speed; high torque

MODEL VOLTAGE NO LOAD WITH LOAD STALL
SPEED
RPM
CURRENT
max A
SPEED
RPM
TORQUE
g.cm
CURRENT
max A
Output
W
TORQUE
g.cm
CURRENT
max A
DC2430 12 5600 0.025 4800 24 0.16 1.18 186 1.06
DC2430 12 3700 0.018 3000 20 0.09 0.62 125 0.46

LV permanent magnet DC motor applies for soap dispenser, water pumping, valve, hair Straightener, sex toys, personal care, beauty equipment, health products, toys, model aircraft, smart kitchen, smart home and many more application


Mounting sizes:



Precious Metal Brush DC Motor Permanent Magnet Soap Dispenser Brush Motor 6V 12V 24V 0



Precious Metal Brush DC Motor Permanent Magnet Soap Dispenser Brush Motor 6V 12V 24V 1Precious Metal Brush DC Motor Permanent Magnet Soap Dispenser Brush Motor 6V 12V 24V 2
