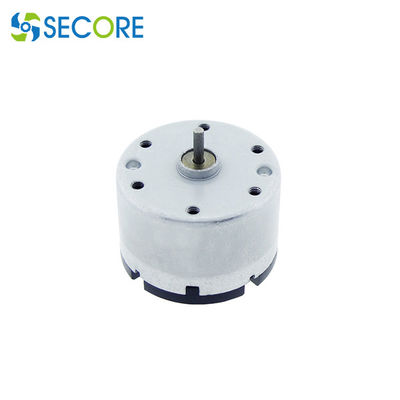

4800rpm Brushed Permanent Magnet DC Motor 6V 12V Oxygen Inhaler Motor

Minimum Order Quantity : 200 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 7-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: DC3323 /520

Detail Information

Motor Dimension: 33mm*22.8mm ( Diameter * Length ) Rated Voltage: 12V
Rated Torque: 38g.cm Rated Speed: 4800rpm Or As Request
Output Power: 1.87W Item Type: Brushed Dc Motor, Brush Motor
Commutation: Mechanical Commutating Application: Powerful Medical Pumping, Oxygen Inhaler
High Light:

4800rpm Brushed Permanent Magnet DC Motor

,

Oxygen Inhaler Brushed Permanent Magnet DC Motor

,

mechanical commutating micro brush motor

Product Description

6V 12V Oxygen Inhaler Motor Customized Micro Dc Brush Motor For Powerful Medical Pump



Secore brush dc motor 520 / DC3323



  • Rated voltage: DC 12V / 6V / 24V
  • The direction of rotation: CW/CCW
  • No-load speed: 6000 rpm
  • No-load current: 0.15 A

Model VOLTAGE NO LOAD WITH LOAD STALL
SPEED
RPM
CURRENT
max A
SPEED
RPM
TORQUE
g.cm
CURRENT
max A
Output
W
TORQUE
g.cm
CURRENT
max A
DC3323 12 6000 0.05 5500 15 0.15 0.86 162 1.22
DC3323 24 6000 0.03 4800 38 0.21 1.87 171 0.66


Low voltage permanent magnet DC motor applies for powerful medical pumping, oxygen inhaler, hair dryer,sump pump, hair Straightener, sex toys, personal care, beauty equipment, health products, toys, model aircraft, smart kitchen, smart home and many more application


Mounting sizes:



4800rpm Brushed Permanent Magnet DC Motor 6V 12V Oxygen Inhaler Motor 0



Typical applications



4800rpm Brushed Permanent Magnet DC Motor 6V 12V Oxygen Inhaler Motor 1
