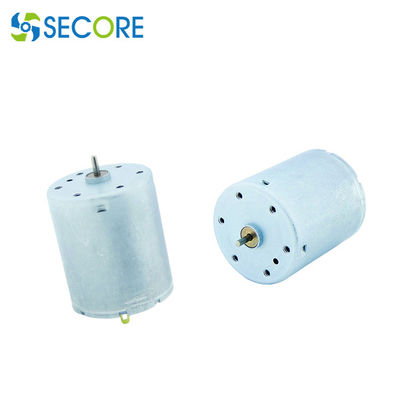

35mm Micro Brushed Permanent Magnet DC Motor 5000rpm Low Voltage For Bladeless Fan

Minimum Order Quantity : 200 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 7-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: DC3540

Detail Information

Motor Dimension: OD 35mm*L 40mm Rated Voltage: 12V
Rated Torque: 6.958mN.m Rated Speed: 5000rpm Or As Request
Output Power: 3.6W Item Type: Iron Core Brushed Dc Motor
Commutation: Mechanical Commutating Application: Office Device, Shredder, Bladeless Fan
High Light:

35mm Brushed Permanent Magnet DC Motor

,

Bladeless Fan Brushed Permanent Magnet DC Motor

,

NdFeB Magnet Brush DC Motor

Product Description

35mm Micro NdFeB Magnet Brush Motor Customized High Speed High Power Dc Motor

Secore brush dc motor  DC3540

  • Rated voltage: DC 12V /24V
  • The direction of rotation: CW/CCW
  • No-load speed: 6000 rpm
  • No-load current: 0.03A

Model VOLTAGE NO LOAD WITH LOAD STALL
SPEED
RPM
CURRENT
max A
SPEED
RPM
TORQUE
kg.cm mN.m oz.in
CURRENT
max A
Output
W
TORQUE
g.cm
CURRENT
max A
DC3540 12 6200 0.07 5000 0.071 6.958 0.986 0.39 3.6 0.285 1.92
DC3540 24 6200 0.04 5000 0.082 8.036 1.1389 0.25 4.1 0.364 0.91


Low voltage permanent magnet DC motor applies for bladeless fan, office automation equipment, precision instrument, kids toys,electric water valves, robots, financial equipment, audio and visual equipment, industrial automation and secure, banking and vending system, home and office automation, automatic door system, medical device, personal care, power tool, smart household appliances, kitchen appliances, auto parts, RC Drone, Fascia Massague Gun


Mounting sizes:


35mm Micro Brushed Permanent Magnet DC Motor 5000rpm Low Voltage For Bladeless Fan 0



More motors

35mm Micro Brushed Permanent Magnet DC Motor 5000rpm Low Voltage For Bladeless Fan 1
