Customize Dual Shaft Brush DC Motor 42mm OD 4800rpm For Parking Air Heater

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 9-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: RoHS Model Number: SC4276G

Detail Information

Product Name: 4277 Brush DC Motor Model Number: SC4276G
Nominal Voltage: 18V No Load Speed: 5760rpm
Rated Speed: 4800rpm Rated Torque: 43mN.m
Output Power: 25W Commutating: Carbon Brush / Machenical
Motor Size: OD42mm * L76mm Application: Parking Air Heater, Home Applicances
High Light:

Dual Shaft Brush DC Motor

,

Brush DC motor 42mm OD

,

Parking Air Heater Brush DC Motor

Product Description

18V 24V Customize Dual Shaft Brush Motor 42OD 4800rpm For Parking Air Heater

Main specification cases:

Model Number: DC-SC4267G-92L
Voltage range: DC 18V, 24V
High Speed: 3000rpm to 9000rpm , or tailor-made
Features: High speed, high torque, steady running, low noise

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY AT MAXIMUM POWER STALL
SPEED CURRENT SPEED TORQUE CURRENT SPEED TORQUE POWER TORQUE CURRENT
RPM A RPM mN.m A RPM mN.m W mN.m A
DC-SC4276G 18 5763 0.428 4816 43.322 2.176 3113 131.804 46 263.61 11.066


Motor dimensions

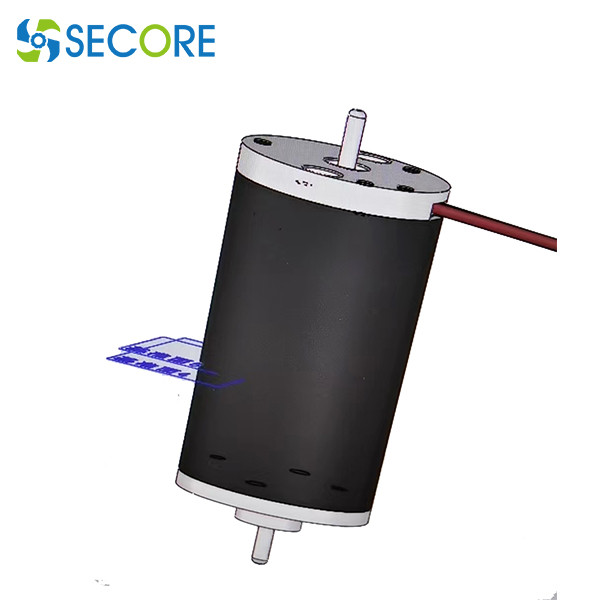

 Customize Dual Shaft Brush DC Motor 42mm OD 4800rpm For Parking Air Heater 0

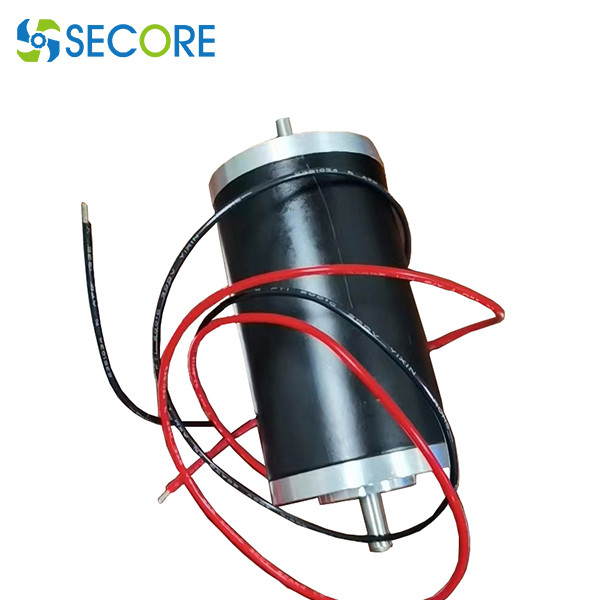

Customize Dual Shaft Brush DC Motor 42mm OD 4800rpm For Parking Air Heater 1

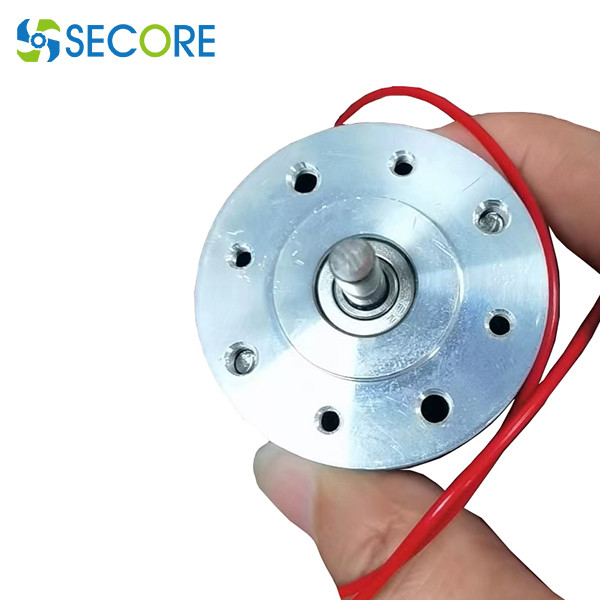

Customize Dual Shaft Brush DC Motor 42mm OD 4800rpm For Parking Air Heater 2



Substitue of Buehle r motor 1.13.042.202 DC 18V ( 25 2070 20 02 00 )

Customize Dual Shaft Brush DC Motor 42mm OD 4800rpm For Parking Air Heater 3





What specifications are needed for the motor?

  • you must know the size of the motor, how to install it (how to fix it in the system);
  • the power, start & rated torque and speed of the motor are needed;
  • the industrial environment in which the motor operates must also be considered: different environment (explosion, humidity, corrosion, high and low temperatures, etc.) may have different design.

For harsh environments, like a waterproof, dustproof and shockproof enclosure needs to be reviewed, please contact us for further details.
