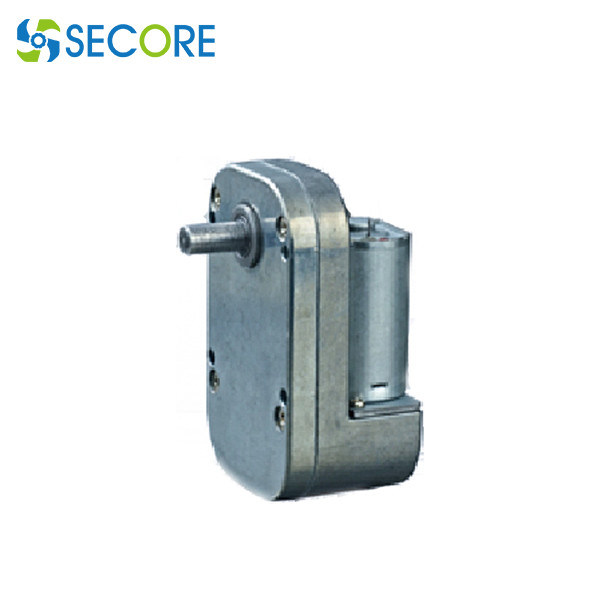

6v Square Flat Gear Motor 1Nm Worm Gear Motor For Vending Robot

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 15-20 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: ROHS Model Number: DC38-2964

Detail Information

Rated Speed: 21r/min Rated Voltage: 6V
Rated Speed: 5rpm Rated Torque: 10kg.cm ( 1N.m )
Gearbox Size: 38*64*13mm Motor Size: 20*32mm
Motor Type: Brush, Or Brushless Motor Typical Application: Vending Robot, Smart Home
High Light:

square flat gear motor

,

1N.m worm gear motor

,

5RPM DC gear motor

Product Description

6v Square Flat Gear Motor 1Nm Worm Gear Motor For Vending Robot

Secore DC2032/180 Brush Motor Main parameters for reference:



MODEL# Voltage
VDC
NO LOAD AT LOAD STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT POWER
±10% r/min mA ±10% r/min mA g.cm g.cm A W
DC2032 12 12500 100 10400 500 35 210 2.5 6.7
6 7000 90 5500 450 20 85 1.9 1.5



Motor with gear reducer main parameters for reference:


MODEL# DC38-2964 Free load speed Rated speed Rated torque Stall torque
Voltage 12V R/Min R/Min kg.cm kg.cm
Gear ratio 131 95 77 1.5 8
756 17 14 8 45
1012 12 10 10 50
1519 7.9 6.5 10 80



MODEL# DC38-2964 Free load speed Rated speed Rated torque Stall torque
Voltage 6V R/Min R/Min kg.cm kg.cm
Gear ratio 131 53 42 1.2 8
756 9 7 8 35
1012 7 5 10 50
1519 4.6 3.6 10 80



Motor mounting sizes and shafts options:



6v Square Flat Gear Motor 1Nm Worm Gear Motor For Vending Robot 0
