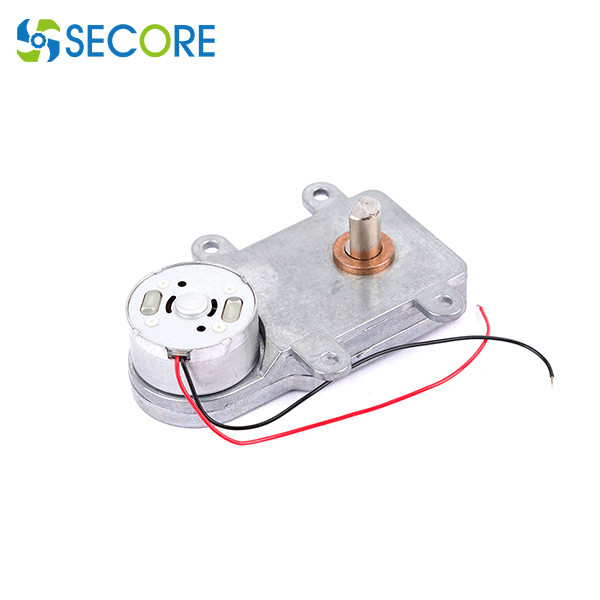

5V Low Voltage Flat Square Gearbox Motor For Electric Lock, Valve Flat Gear Motor

Name: 5V Low Voltage Flat Square Gearbox Motor For Electric Lock, Valve Flat Gear Motor
Brand: SECORE
SKU: DC2418-32GM
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (177 reviews)

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	500pcs per carton or as request	Delivery Time :	15-20 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	ROHS	Model Number:	DC2418-32GM

Detail Information
Rated Voltage:	5V	Free Load Speed:	20r/min
Rated Speed:	16rpm	Rated Torque:	1.2kg.cm ( 0.12N.m )
Gearbox Size:	4866.525mm	Motor Size:	24*18mm
Motor Type:	Brush, Or Brushless Motor	Application:	Valve, Electric Lock, Carbinet Lock
High Light:	flat lock gearbox motor , valve flat gear motor , 5v low voltage gear motor

Product Description

5V Low Voltage Flat Square Gearbox Motor For Electric Lock, Valve Flat Gear Motor

Secore DC2418/310 Brush Motor Main parameters for reference:

MODEL#	Voltage VDC	NO LOAD		AT LOAD			STALL
		SPEED	CURRENT	SPEED	CURRENT	TORQUE	TORQUE	CURRENT	POWER
		±10% r/min	mA	±10% r/min	mA	gf.cm	gf.cm	A	W
DC2418	5	6400	22	5000	160	10	31	0.65	0.8
DC2418	12	7000	55	5700	185	10	140	0.85	2.5

Motor with gear reducer main parameters for reference:

MODEL#	DC2418-32GM	Free load speed	Rated speed	Rated torque	Stall torque
Voltage	5V	R/Min	R/Min	kg.cm	kg.cm
Gear ratio	98	65	51	0.4	2
	119	53	40	0.5	2.5
	206	31	24	0.8	3.5
	322	20	16	1.2	6
	534	12	9	2.0	10

MODEL#	DC2418-32GM	Free load speed	Rated speed	Rated torque	Stall torque
Voltage	12V	R/Min	R/Min	kg.cm	kg.cm
Gear ratio	98	71	58	0.4	2
	119	58	45	0.5	2.5
	206	34	28	0.8	3.5
	322	22	18	1.2	6
	534	13	11	2.0	10

Motor mounting sizes and shafts options:

5V Low Voltage Flat Square Gearbox Motor For Electric Lock, Valve Flat Gear Motor 0

Customize your motor application:

1) Can be equipped with other motor models;
2) The motor can be equipped with an encoder, and the gearbox can be used as a double output shaft;
3) The brushless motor can be replaced;
4) Parameters and output shaft size can be customized according to customer requirements;
5) Accept other customization.
