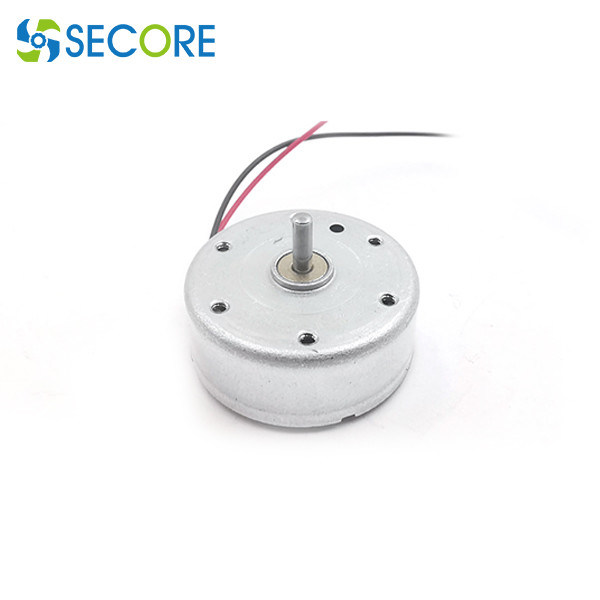

3V 5V High Speed DC Motor , 10000rpm Long Shaft Fan Motor Bubble Maker Motor

Name: 3V 5V High Speed DC Motor , 10000rpm Long Shaft Fan Motor Bubble Maker Motor
Brand: SECORE
SKU: DC2410
Price: 1.00 USD
Availability: InStock
Rating: 5 (174 reviews)

Minimum Order Quantity :	200	Price :	Negotiated The Price
Packaging Details :	50pcs per carton or as request	Delivery Time :	7-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	DC2410

Detail Information
Motor Dimension:	OD24mm*L10mm	Rated Voltage:	3V
Rated Speed:	6800rpm Or As Request	Rated Torque:	3g.cm
Rated Current:	150mA	Output Power:	0.45W
Motor Type:	Brush Commutating Motor	Application:	Fan, Bladeless Fan, Bubble Maker
High Light:	3V high speed dc motor , 10000rpm fan motor , 10000rpm bubble maker motor

Product Description

3V 5V High Speed Dc Motor, 10000rpm Long Shaft Fan Motor Bubble Maker Motor

Secore brushed dc motor DC2410

Rated voltage: DC3V 5V or per request
The direction of rotation: CW/CCW
No-load speed: 8800 rpm
No-load current: 60mA

MODEL#	Voltage VDC	NO LOAD		AT LOAD				STALL
		SPEED	CURRENT	SPEED	CURRENT	TORQUE	POWER	TORQUE	CURRENT
		±10% r/min	mA	±10% r/min	mA	g.cm	W	g.cm	mA
DC2410	3	8800	60	6800	150	3	0.45	13	550
DC2410	5	9600	40	6600	171	5	0.85	16	550

Mounting sizes:

3V 5V High Speed DC Motor , 10000rpm Long Shaft Fan Motor Bubble Maker Motor 0

Performance curve:

3V 5V High Speed DC Motor , 10000rpm Long Shaft Fan Motor Bubble Maker Motor 1

What’s the main application of the micro dc motor?
Our DC motors are widely applied in home and office automation, auto parts, automatic door system, consumer electronics, medical device, personal care, precision instrument, power tool, smart household appliances, kitchen appliances, RC Drone, industry apparatus, kids toys,electric water valves, robots,medical devices, financial equipment, audio and visual equipment, industrial automation and secure, banking and vending system, various fans and so on.
