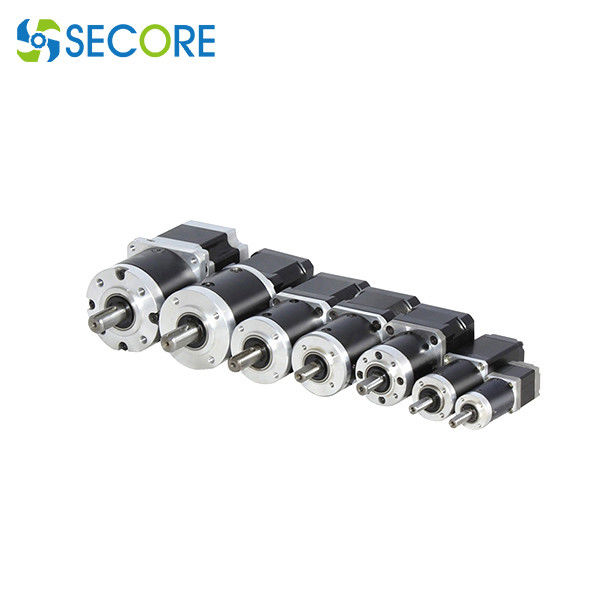

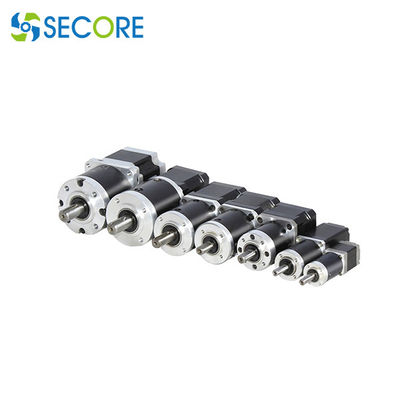

DC / AC BDC, BLDC, 120mm Stepper Gear Motor With Planetary Gear Reducer

Place of Origin:	Guangdong	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	gear motor series

Detail Information
Rated Torque:	Up To 1000N.m	Running Speed:	1~999rpm
Rated Voltage:	6-400VDC	Motor Type:	BDC, BLDC, Stepper Motor
Gearhead Diameter:	16~120mm	Continuous Current:	1A To 55A
Gear Type:	Planetary Gearbox	Motor Diameter:	16~170mm
Highlight:	120mm stepper gear motor , Planetary stepper gear motor , 120mm planetary dc motor

Product Description

Tailored DC / AC BDC, BLDC, Stepper Gear Motors With Planetary Gear reducer

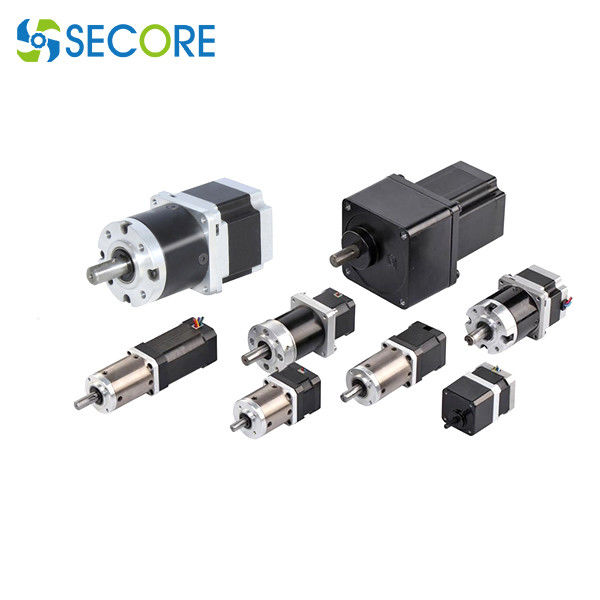

DC/AC Brush and Brushless Planetary Gear Motor, stepping motor Series

Plannetary Gearbox Outer diameter: 16 ~ 120mm

Matching Motor Type:

1) Brushed/Brushless DC Planetary Gear Motor

Brushed DC Motor Frame size (Outer Diameter): 16-170mm

Brushless DC Motor Frame size (Outer Diameter): 22~86mm

Gear Motor General Performance:

Voltage: 6VDC ~ 400VDC
Motor Rated Speed: 600 ~ 17000rpm
Gear Motor Rated Speed: 1 ~ 999rpm
Motor Output power: 1W ~ 4500W
Gear Motor Rated Torque: up to 1000N.m
Gear reduction Ratio Range: 1:3 ~ 1:3000
Optional Components: Magnetic or Optical Encoder; Power-on, Power-off Brake; Connector; External, Built-in Driver Available
Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68
Customized Technical Specs. & Dimensions Available

2) Hybrid Planetary Gear Stepper Motor

Stepper Motor mounting face ( frame size): 20~86mm
General Performance:
Voltage: 2.7VDC ~ 12VDC
Step Angle: 0.9°, 1.8°
Gearbox Torque: 0.6N.m ~ 500N.m
Gear Ratio: 1:3.71~1:515
Ambient Temperature: -20℃ ~+50℃
Available Customized IP Class: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68
Optional Components: Magnetic,Optical Encoder; Power-on, Power-off Brake; Connector; External, Built-in Driver
Customized shaft & Flange Cover Available
