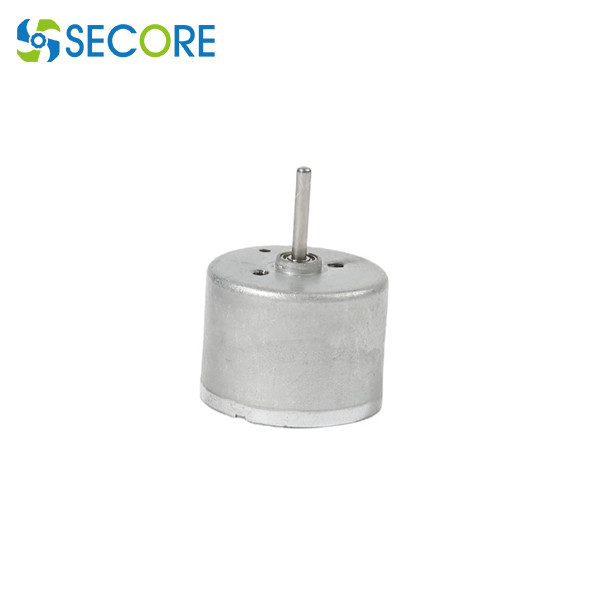

mini 5v 6v 9v 12 volt 24volt brushless dc fan motor with fair price for electric fan
To be tailored:
1. DC motor, gearbox motor, vibration motor, automotive motor.
2. Accessories offered like encoder, gear, worm, wire, connector.
3. Ball-bearing or Oil-impregnated bearing.
4. Shaft configuration(multi-knurls,D-cut shape, four-knurls etc).
5. Metal end cap or plastic end cap.
6. Precious metal brush/ carbon brush.
|
MODEL
|
VOLTAGE
|
NO LOAD
|
AT MAXIMUM EFFICIENCY
|
STALL
|
|
OPERATING
RANGE
|
RATED
|
SPEED
|
CURRENT
|
SPEED
|
CURRENT
|
TORQUE
|
OUTPUT
|
TORQUE
|
CURRENT
|
|
r/min
|
A
|
r/min
|
A
|
g.cm
|
W
|
g.cm
|
A
|
|
BLS2418I-V1
|
5V~9V
|
6V
|
7230
|
0.14
|
5784
|
0.543
|
29.5
|
1.751
|
147.6
|
2.157
|
|
BLS2418I-V2
|
8V~16V
|
12V
|
6430
|
0.05
|
5080
|
0.194
|
22.8
|
1.188
|
108.6
|
0.738
|
|
BLS2418I-V3
|
8V~26V
|
24V
|
8900
|
0.045
|
6942
|
0.164
|
28.7
|
2.04
|
130.2
|
0.588
|
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 5000-50000hrs
Notice: Data in this specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be tailored to best meet the application.
Generally select the appropriate power, voltage, speed, torque and body size according to the actual situation (load, structure size, etc.), and then match the brushless drive according to the specific parameters of the selected DC brushless motor.
If there is no suitable specifications, it can be customized according to actual needs.
| Motor Terminations |
| Terminations |
I/O |
Conditions |
Remark |
| GND |
IN |
Ground |
(black wire ) Ground |
| Vcc |
IN |
DC12V±10% |
(red wire ) power supply |
| FG |
VOH |
OUT |
Min4V at 5V 10KΩ pull up |
(yellow wire) this is the open collector output which can detect the rotation speed using the FG output according to the phase shift |
| VOL |
Min0V Max0.6V |
| FG current |
Max 5mA |
| FG pulse quantity |
12 pulse/round |
| PWM |
Input voltage |
IN |
0~5V |
blue wire |
| VIH |
Min 2.0V |
Motor running |
| VIL |
Max 0.6V |
Motor stop |
| PWM frequency |
Max50KHz |
Advise 15~25KHz |
| CW/CCW |
Input voltage |
IN |
0~5V |
white wire |
| VIH |
Min 2.0V |
CCW |
| VIL |
Max 0.6V |
CW |
Brushless DC Motor-Solution in Areas of expertise
Automotive Parts: Micro Pump, Valve
Home Application: White Goods, Small Appliance, Small Fanner, Electric Cooker
Medical Apparatus: Medical Pump, Medical Stirrer, Centrifugal Machine
Industry Apparatus: Electric Valve, Portable Screwdriver, Air/Water/Vacuum Pumps
Business Equipment: Scanner, Cash Register, Card Sender
Personal Care: Hair Curler, Hair Straighter, Hair Dryer, Electric Shaver, Massager,Vibrator
