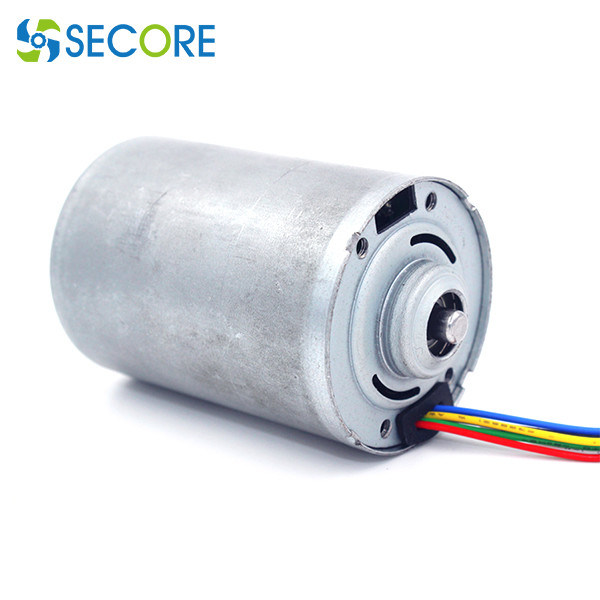

BLDC 10000 Rpm Brushless DC Motor Permanent Magnet 75W

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-4260I

Detail Information

Speed: 3000rpm 5000rpm 20000rpm Or Customized Rated Torque: 600g.cm Or As Request
Type: BLDC Motor, Brushless Electric Dc Motor, DC Motor Typical Application: Kitchen Appliances, Vacuum Cleaners
Continuous Current: 0.65A Model Number: BLS4260I
Dimension: ∮42* Length 60(mm) Weight: 295g
Origin: China Efficiency: IE 1
High Light:

10000 rpm bldc motor

,

10000 rpm brushless dc motor

,

75W 10000 rpm brushless dc motor

Product Description

700g.cm torque 75W 10000rpm bldc permanent magnet inrunner motor with controller



DC Brushless inner rotor Motors :



Size: diameter 42.0* 60mm length

Built-in driver

PWM pulse wide speed range

FG speed feedback signal

Low EMC,Low noise

Long life: 20000hrs Min.

Speed 2600rpm-20000rpm,torque 6000g.cm







MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS4260I-V1 8V~16V 12V 2038 0.15 1773 0.934 480.3 8.734 3694.3 6.184
BLS4260I-V2 8V~26V 18V 3690 0.2 3284 1.564 654.7 22.05 5951.6 12.6
BLS4260I-V3 8V~26V 24V 4280 0.2 3766 1.567 766.6 29.62 6388.1 11.59



BLDC 10000 Rpm Brushless DC Motor Permanent Magnet 75W 0

BLDC 10000 Rpm Brushless DC Motor Permanent Magnet 75W 1



What is brushless DC motor?



The brushless DC motor is composed of the motor body and the driver. The brushless DC motor uses Hall sensors to replace the carbon brush commutator. NdFeB is used as the permanent magnet material of the rotor. Compared with the general traditional DC motor, the performance of the brushless DC motor has great advantages, is the most ideal speed-regulating motor today.



TO BE TAILORED



Customized voltage, motor performance

Customized mounting, shaft shape and dimension, and lead configuration

EMI/RFI suppression circuit

Overload protection, thermal protection

High temperature and waterproof option

Integrated gearbox, controller, encoder and brake



If there is no suitable specifications, it can be customized according to actual needs.



Brushless vs brush DC motors



Brushless motors have the advantages of brushed motors and are superior to brushed phones. Main features: low noise, long life, stable operation, no sparks, high efficiency, high dynamic response, strong reliability, etc.,

The application of permanent magnet brushless DC motors is increasing by about 15% every year. Under such circumstances, it is inevitable that brushless motors are gradually replacing other motors.



About us



Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.



BLDC 10000 Rpm Brushless DC Motor Permanent Magnet 75W 2



BLDC 10000 Rpm Brushless DC Motor Permanent Magnet 75W 3







BLDC 10000 Rpm Brushless DC Motor Permanent Magnet 75W 4



Typical Application:



-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
