12v Shaft 120mm Brushless DC Electric Motor Medical Mixer 30W

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-3630I

Detail Information

Running Speed: 10000rpm Or Customized Rated Voltage: 12V, 24V
Rated Torque: 120-210 G.cm Or As Request Continuous Current: 0.75-1.2A
Diameter * Length: ∮36*30(mm) Weight: 165g
Type: 12v Brushless Motor, Brushless Motor Speed Controller, Brushless Fan Typical Application: Hand Blender, Cooker, Electric Clipper, Pet Barber, Handhold Mixer
High Light:

12v Brushless DC Electric Motor

,

120mm Brushless DC Electric Motor

,

120mm 30w dc motor

Product Description

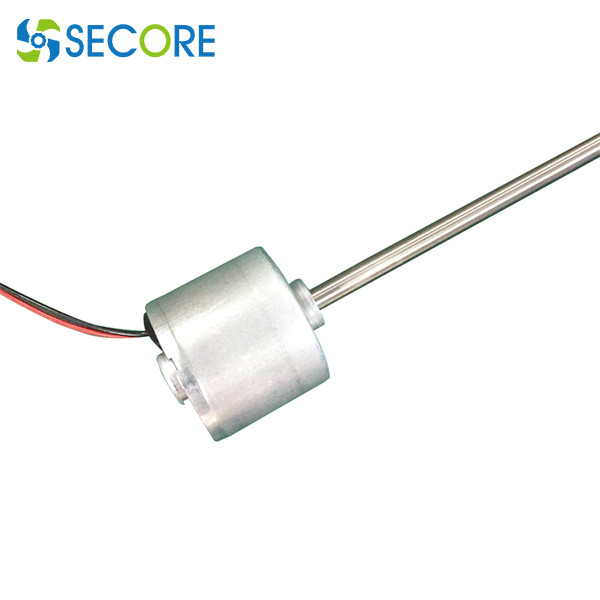

120mm 12v Shaft Brushless Dc Electric Motor 30W For Medical Mixer



Key features:



Diamension: φ36.0* 30.0mm

Built-in driver

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal

Low EMC/ Low EMI / Low noise

Long life: 20000hrs Min.

Over-current protection

Over-voltage protection

Under-voltage protection

OEM and ODM orders are welcome

The design can be customized

Product discription: Brushless DC motor, brushless ventilator motor, high-power brushless DC motor, high-speed permanent magnet brushless motor



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS3630I-V1 8V~16V 12V 5832 0.254 4880 0.664 138.4 6.535 657.7 3.457
BLS3630I-V2 8V~26V 18V 7523 0.206 6166 0.976 182 11.551 1016.6 4.362
BLS3630I-V3 8V~26V 24V 8866 0.187 7387 0.898 191.6 14.474 1125.4 4.255





12v Shaft 120mm Brushless DC Electric Motor Medical Mixer 30W 0



Selecting criterias for an electric motor?



1. For dynamic applications, a brushed DC motor or brushless DC motor is an inevitable choice.

2. For running continuously and with few gear changes applications, you should select an AC Universal Motor.
3. For low-speed, high-load applications, a motor(AC/DC/BLDC) with a specific reduction ratio gearbox is an optimal choice.

4. For applications that require precise control of speed and/or torque, you need to add the appropriate encoder to the motor(AC/DC/BLDC) solution

5. For applications that require precise positioning, you should choose a stepper motor.



TO BE TAILORED



1. Customized voltage, motor performance

2. Customized mounting, shaft dimension, and lead configuration

3. EMI/RFI suppression circuit

4. Overload protection, thermal protection

5. High temperature and waterproof option

6. Integrated gearbox, controller, encoder and brake



some of Our customers



12v Shaft 120mm Brushless DC Electric Motor Medical Mixer 30W 1



Typical Application:



-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
