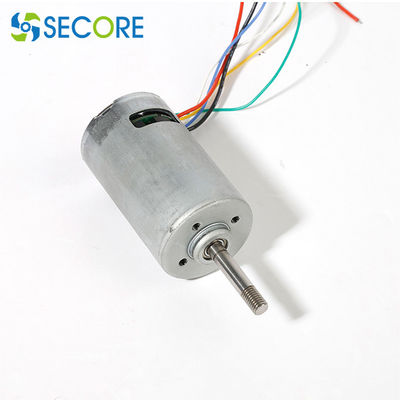

52mm High Power Brushless DC Motor , 8000g.Cm Mini Brushless DC Motor

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-5285I

Detail Information

Speed RPM: 5000 Or Customized Rated Torque: 2000g.cm -8000 G.cm
Continuous Current: 0.3-2.3A Diameter*length: ∮52*85(mm)
Construction: Pernanent Magnet Commutation: Brushless
Type: Dc Brushless Motor, 48v Brushless Dc Motor, Brushless 24v Dc Motors Typical Application: Electric Lift Desk, Water Meter, Solar Heliostat
High Light:

8000g.cm high power brushless dc motor

,

52mm high power brushless dc motor

,

52mm mini brushless dc motor

Product Description

24V High Torque Brushless Dc Motor 52mm Classic Bldc Motor For Vending Machine



Specs for Brushless DC internal rotor Motor:



Size: φ52.0* 85mm

Built-in driver

PWM pulse wide speed range

FG speed feedback signal

Low EMC/ EMI /noise

Long life: 20000hrs Min.



52mm High Power Brushless DC Motor , 8000g.Cm Mini Brushless DC Motor 0

More models for further reference:



Model # BLS2418I BLS2419I BLS2430I BLS2838I BLS3640I BLS2413O BLS4220O
Type inner BLDC Motor inner BLDC Motor inner BLDC Motor inner BLDC Motor inner BLDC Motor outer BLDC Motor outer BLDC Motor
Size (mm) Φ24.4*H18.1 Φ24.4*H19.0 Φ24.4*H30.8 Φ28.0*H37.6 Φ36.0*H40.0 Φ24.0*H13.0 Φ40.5*H21.0
Voltage (V) 3.7~26VDC 3.7~26VDC 3.7~26VDC 3.7~26VDC 3.7~26VDC 3.7~26VDC 100~240VDC
RPM 3000~10,000 3000~12,000 2000~12,000 3000~15,000 3000~10,000 3000~25,000 6000~25,000
Power (W) 3~5W 5W 6~10W 10~15W 20~30W 15~25W 130W
Weight(g) 30g 35g 50g 75g 150g 50g 130g
Typical
application
electric razor,
electric hair trimmer, hair curler

electric hair trimmer, hair curler
electric razor,
electric hair trimmer
electric razor,
electric hair trimmer
pet electric hair trimmer household hair dryer hair dryer



52mm High Power Brushless DC Motor , 8000g.Cm Mini Brushless DC Motor 1

2-pole & 4-pole Brushless DC Motor



2-pole & 4-pole Brushless DC motors are three phase motors where rare earth magnet are configured, which have a wide speed and torque range with integrated speed control electronics.



Internal Rotor BLDC Motor



The internal rotor BLDC motors are specially designed to meet rapid acceleration and high precision and low noise which applications call for.



Outerl Rotor BLDC Motor



The outer rotor BLDC motors Motor could deliver stable high torque , compact size and long service life for different applications.



TO BE TAILORED



♦ Customized voltage, motor performance

♦ Customized mounting, shaft shape and dimension, and lead configuration

♦ EMI/RFI suppression circuit

♦ Overload protection, thermal protection

♦ High temperature and waterproof option

♦ Integrated gearbox, controller, encoder and brake



If there is no suitable specifications, it can be customized according to actual needs.



About us



Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.



52mm High Power Brushless DC Motor , 8000g.Cm Mini Brushless DC Motor 2



Some of our customers:



52mm High Power Brushless DC Motor , 8000g.Cm Mini Brushless DC Motor 3



Typical Application:



-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
