28mm Three Phase Brushless DC Motor , 12V Brushless Motor With Gearbox Encoder Controller

Contact Now

28mm Three Phase Brushless DC Motor , 12V Brushless Motor With Gearbox Encoder Controller

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	100pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Guangdong	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLS2847I

Detail Information
Speed:	4500RPM Or Customized	Rated Torque:	112g.cm Or As Request
Continuous Current:	0.83A Or As Request	Diameter*Len:	Φ28*47（mm）
Construction:	Pernanent Magnet	Weight:	114g
Keyword:	Brushless Motor With Controller, Motor Brushless 12v	Typical Application:	Ticket Printer, Fast Feeder, Golf Cart, Household Robot
High Light:	28mm three phase brushless dc motor , 12v three phase brushless dc motor , 28mm 12v brushless motor

Product Description

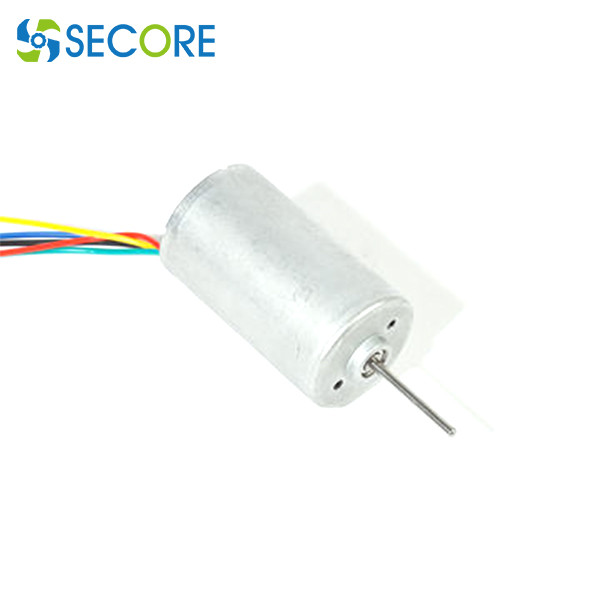

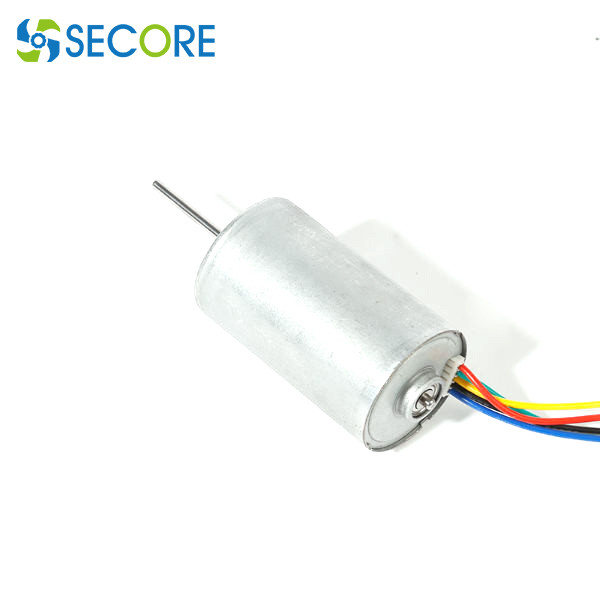

28mm Brushless Dc Motor Integrated With Gearbox / Encoder / Controller For Electric Curtain

Specifications :

1. Dimension: Φ28* 47mm

2. Shaft Diameter: 2.3mm

3. Rated Voltage:12Volt,18V, 24V

4. Endplay: 0.3mm

5. Lifetime: 20000H min

6. Phase: 3

7. Rotation: CW/CCW controllable

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	OPERATING RANGE	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	OPERATING RANGE	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BLS2847I-V1	6V~12V	12V	7170	0.17	6095	0.903	122.2	7.64	814.8	5.059
BLS2847I-V2	8V~16V	18V	10833	0.2	9100	1.807	147.9	13.81	924.3	5.746
BLS2847I-V3	8V~26V	24V	12370	0.21	10391	1.113	173.6	18.5	1085.1	5.852

28mm Three Phase Brushless DC Motor , 12V Brushless Motor With Gearbox Encoder Controller 0

Production capacity

25 lean production lines (and continue to expand and upgrade automated production lines);
Monthly production capacity of 3 million units and continues to grow;
The versatility of the motor production line and tooling equipment;
Self-developed general fixtures and process equipment;
Lean production;
Billboard material management;
Error-proofing measures for assembling machine molds (Poke Yoke);
The unitized manufacturing concept of lean assembly line;
Strict control of process manual and QC control plan

28mm Three Phase Brushless DC Motor , 12V Brushless Motor With Gearbox Encoder Controller 1

some of Our customers

28mm Three Phase Brushless DC Motor , 12V Brushless Motor With Gearbox Encoder Controller 2

28mm Three Phase Brushless DC Motor , 12V Brushless Motor With Gearbox Encoder Controller 3

Brushless DC ELectric Motor-Typical Application

-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder, Scanner

• Sphygmomanometer, Medical Stirrer, Medical Pump

- Power tool and fitness equipment

• Electric scissors,Water Pump, Vacuum Pump,Oxyen Generator

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler, fanner

• Blender, sweeper, window cleaner, small household appliances
