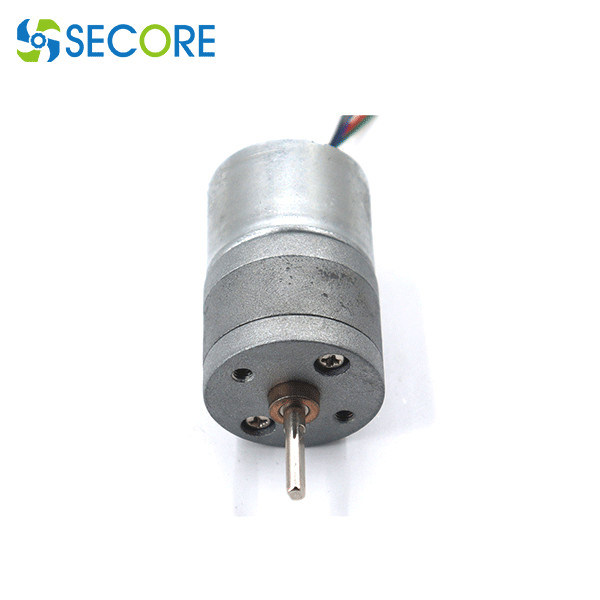

50rpm Robotic Arm Brushless DC Gear Motor With Gearhead Reduction

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS2418I-GB

Detail Information

Speed: 50rpm Or Customized Rated Voltage: 12v Or As Request
Rated Torque: 0.2N.m Or As Request Dimension: ∮24*18(mm)
Type: Dc Gear Motor, Micro Gear Motor, 100rpm Dc Motor Typical Application: Cordless Drill, Pump, Ai Robot, Medical Robot, Transmission Device
High Light:

50rpm Brushless DC Gear Motor

,

Gearhead Brushless DC Gear Motor

,

50 rpm gear motor

Product Description

50rpm Brushless Dc Gear Motor With Gearhead Reduction For Robotic Arm



Main features:



Size: φ24.0*18.0mm-24.0*57mm

Built-in driver, gearbox

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal

Low EMC

Low noise

Long life: 20000hrs Min.

Over-current protection

Over-voltage protection

Under-voltage protection

OEM and ODM orders are welcome



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A N.m W N.m A
BLS2418I-GB-V1 5V~9V 6V 90 0.12 66 0.56 0.17 1.77 0.89 2.16
BLS2418I-GB-V2 8V~16V 12V 53 0.04 97 0.18 0.23 1.18 0.98 0.74
BLS2418I-GB-V3 8V~26V 24V 89 0.05 68 0.16 0.22 2.03 0.99 0.59





50rpm Robotic Arm Brushless DC Gear Motor With Gearhead Reduction 0


TO BE TAILORED



1. Voltage, current, speed and torque.
2. Shape of shaft: "D" "Round" "Flat" "Hexagon Axis" "Square axis", shaft dimension
3. Bearing: ball bearing, oil bearing
4. Materials of shell: plastic metal etc
6. Optional equip with reducer, braker, encoder, controller, gearhead, driver etc



If there is no suitable specifications, it can be customized according to actual needs.



Typical Application:



Auto industry Adjustable shock absorbers
Emission abatement system
Electronic steering
Electronic tachometer
Communications Equipment Antenna System
Copier / printer / plotter
Recorder
Professional Camera
Instrumentation Microscope
Laser leveling system
Precision measuring instrument
Meteorological Analyzer
Industrial Automation Precision Positioning System
Handling System
transmission system
Industrial robots
Electronic / Semiconductor Equipment Fast Feeders
SMT Positioning device
Lithography
A wafer processing system


Q1. What kind of motors you can provide?

A: Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 500kg.cm


Q2. Can you send me a price list?

A: For all of our motors, they are customized based on different requirement as per torque, lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you may, please share your expected performance and specific requirement for us better to provide a solution and closest offer.



Q3. What's the lead time for regular order?
A: For mass orders, the standard lead time is 25-40 days and LT can be shorter or longer based on different model, period and quantity.



Q4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.


Q5. Can I get some samples?
A: Yes, we are glad to offer samples for testing before the initial order. We’re afraid we don’t make sample for personal use or replacement.
