36mm Motor Dc Gearbox 24 Volt , Built-In Driver 24V DC Motor With Gearbox

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLD3640

Detail Information

Permissible Torque: Rated Upto 3N.m Continuous Running Speed: 1~999rpm As Request
Rated Voltage: 24Volt 12volt Gearbox Diameter: 36
Color: Custimizable Commutation: Brushless Dc Gear Motor
Usage: Vending Machine, ATM, Projector, Juicer, Fan, Venlitator Motor Type: Brushless Fan Motor, Brushless Planetary Gear Motor
High Light:

36mm motor dc gearbox 24 volt

,

Brushless motor dc gearbox 24 volt

,

36mm 24v dc motor with gearbox

Product Description

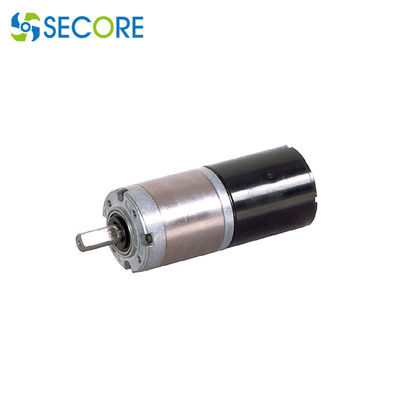

36mm Built-In Driver Brushless Dc Motor With 40mm Planetary Gearbox



12V, 24V Micro BLDC Planetary Gearbox Motor
Model: BLD3640
Rated Voltage: 24V
Permissible torque range 0.3N.m ~ 3N.m for continuous running
Optional components: magnetic/optical encoder; power-on/power-off brake; cable connector; controller Customized shaft & flange dimensions and technical specifications are available upon requested.

Dimension:

36mm Motor Dc Gearbox 24 Volt ,  Built-In Driver 24V DC Motor With Gearbox 0

Brushless motor technical data:

Model Number of Poles Number of phase Rated voltage No-load speed No-load current Rated torque Rated speed rated current Rated Power
  # # V DC r/min mA mN.m r/min mA W
BLD3640-1240 4 3 12 4000 400 15 3000 850 4.7
BLD3640-2440 4 3 24 4000 200 20 3000 550 6.3

Brushless planetary gear motor technical data  ( BLD3640-1240):

Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264 369
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4
Length mm 26.5 26.5 33.6 33.6 33.6 40.5 40.5 40.5 40.5 47.4 47.4 47.4
No-load speed rpm 1078 772 286 211 148 78 56 40 29 21 15 11
Rated speed rpm 809 579 214 158 111 59 42 30 22 16 11 8.1
Rated torque N.m 0.05 0.07 0.17 0.23 0.33 0.56 0.78 1.1 1.5 1.8 2.6 3
Max permissible load in a short time N.m 1 1 3.5 3.5 3.5 7.5 7.5 7.5 7.5 9 9 9

Brushless planetary gear motor technical data ( BLD3640-2440):

Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264 369
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4
Length mm 26.5 26.5 33.6 33.6 33.6 40.5 40.5 40.5 40.5 47.4 47.4 47.4
No-load speed rpm 1078 772 286 211 148 78 56 40 29 21 15 11
Rated speed rpm 809 579 214 158 111 59 42 30 22 16 11 8.1
Rated torque N.m 0.067 0.093 0.23 0.31 0.44 0.74 1 1.5 2 2.5 3 3
Max permissible load in a short time N.m 1 1 3.5 3.5 3.5 7.5 7.5 7.5 7.5 9 9 9

More motors:

36mm Motor Dc Gearbox 24 Volt ,  Built-In Driver 24V DC Motor With Gearbox 1



Typical Application:



Industrial Automation Precision Positioning System
Handling System
transmission system
Industrial robots
Electronic / Semiconductor Equipment Fast Feeders
SMT Positioning device
Lithography
A wafer processing system
Power Tools Professional power tool battery
Electric screwdriver Dollar banknote handling equipment
Pistols ATM
Pruning machine Ticket Printer
Household / Consumer Goods Model Trains
Game
Golf Cart
Household robots
