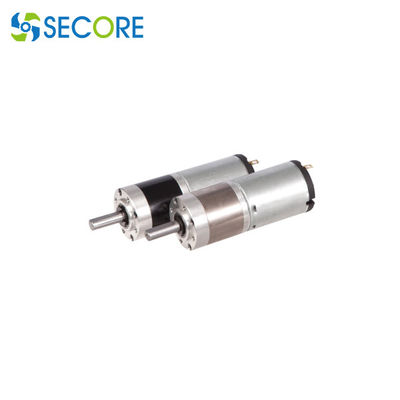

OD28mm Reversible Brushless DC Planetary Gear Motor High Torque Low Rpm 20RPM 35RPM

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: DC2838-1240

Detail Information

Speed: 5000RPM Reduce To 20RPM 35RPM Gear Ratio: 1:3.7 ~1:369
Permissible Torque: 0.1-1.0N.m Or As Request Motor Dimension: Diameter 28mm * Length 38mm
Keyword: 12V Dc Gear Motor, Gearbox 35rpm Planetary Motor Typical Application: Kitchen Appliance, Kitchen Appliance, Corn Popper, Vacuum Cleaner
High Light:

12V DC Planetary Gear Motor

,

20RPM DC Planetary Gear Motor

,

12v dc motor high torque low rpm

Product Description

DC 12V Gear Box Reversible High Torque Reduction DC Gear Motor 20RPM 35RPM OD28mm



Main features:



Motor type: Brush commutated DC motor

Gearbox type: Planetary

Diameter: Gearbox: 28mm; DC motor:28mm

Gear ratio: 1:3.7 ~1:369

No load current: 80mA; 100mA; 60mA

Nominal current: 350mA; 370mA; 200mA

No load speed: 4000rpm; 5000rpm

Nominal speed: 2600rpm; 3450rpm; 4000rpm

Permissible load range: 0.1N.m ~ 1.0N.m for S1 duty cycle

Nominal power: 1.86W; 2.48W; 2.87W

IP rating: up to IP68



Gear motor size:



OD28mm Reversible Brushless DC Planetary Gear Motor High Torque Low Rpm 20RPM 35RPM 0



Motor Technical parameters:



Model Rated voltage No-load speed No-load current Rated speed Rated torque Output power Rated current Stall torque Stall current
  VDC RPM mA RPM mN.m W mA mN.m A
DC2838-1240 12 4000 80 2600 7 1.86 350 20 0.75
DC2838-1250 12 5000 100 3450 7 2.48 370 21.5 0.9
DC2838-2450 24 5000 60 4000 6.9 2.87 200 22 0.6


Gear motor technical parameters for DC2430-1245:



Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264 369
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4
Length (L) mm 22.6 22.6 29.2 29.2 29.2 35.6 35.6 35.6 35.6 42 42 42
No-load speed rpm 1078 772 286 211 148 78 56 40 29 21 15 11
Rated speed rpm 701 502 186 137 96 51 37 26 19 14 10 7
Rated torque N.m 0.023 0.033 0.079 0.11 0.15 0.26 0.36 0.51 0.71 0.86 1 1
Max permissible load in a short time N.m 0.3 0.3 1.2 1.2 1.2 2.4 2.4 2.4 2.4 3 3 3


Gear motor technical parameters for DC2430-1260:



Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264 369
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4
Length (L) mm 22.6 22.6 29.2 29.2 29.2 35.6 35.6 35.6 35.6 42 42 42
No-load speed rpm 1348 965 357 263 185 98 70 50 36 26 19 14
Rated speed rpm 930 666 246 182 128 68 49 35 25 18 13 9.3
Rated torque N.m 0.023 0.033 0.079 0.11 0.15 0.26 0.36 0.51 0.71 0.86 1 1
Max permissible load in a short time N.m 0.3 0.3 1.2 1.2 1.2 2.4 2.4 2.4 2.4 3 3 3



Gear motor technical parameters forDC2430-12100:



Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264 369
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4
Length (L) mm 22.6 22.6 29.2 29.2 29.2 35.6 35.6 35.6 35.6 42 42 42
No-load speed rpm 1348 965 357 263 185 98 70 50 36 26 19 14
Rated speed rpm 1078 772 286 211 148 78 56 40 29 21 15 11
Rated torque N.m 0.023 0.032 0.078 0.11 0.15 0.26 0.36 0.5 0.7 0.85 1 1
Max permissible load in a short time N.m 0.3 0.3 1.2 1.2 1.2 2.4 2.4 2.4 2.4 3 3 3



Dimension:

Motor diameter: 28mm ( customizable )

shaft length: 20 mm  ( customizable )

shaft diameter: 6 mm  ( customizable )

Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.



Motor solution in Areas of expertise:



printer motor copier motor projector motor
shredder motor surgical robot motor medical stirrer motor
water pump motor vacuum pump motor vacuum cleaner motor
fascia gun motor massager motor treadmill motor
blender motor sweeper motor roll curtain motor
