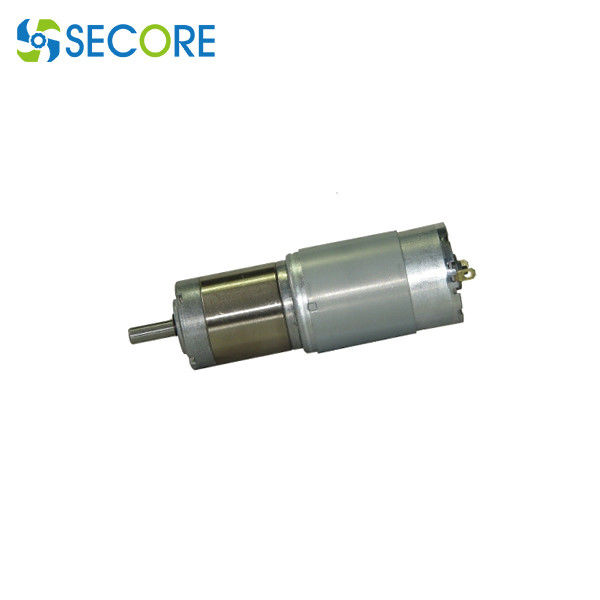

12V 36mm PM Gearhead DC Motor , 24 Volt DC Planetary Geared Motor With Shaft 6mm

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	100pcs per carton or as request	Delivery Time :	15-18 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Guangdong	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	DC3657

Detail Information
Speed:	30rpm Or Customized	Rated Voltage:	24V
Rated Torque:	7.5N.m Or As Request	Diemeter:	Max 45mm
Keyword:	30rpm Dc Gear Motor, Gearhead Dc Motor, Brush Dc Planetary Gear Motor	Typical Application:	AI Product, Robot Arm, Robotics, Printing Machine, Oven, Telescopic Rod, Massage Chair
High Light:	gearhead dc motor , 24V gearhead dc motor , 24 volt dc planetary geared motor

Product Description

30rpm DC Gear Motor, Brush Gearbox Motor 24W For Industrial Robot Arm

Main features:

Motor type	Brush commutated DC motor
Gearbox type	Planetary
Diameter	Gearbox: 32mm; DC motor:36mm
Nominal voltage	12V/24V DC or customized
Gear ratio	1:3.7 ~1:354
No load current	260mA; 130mA
Nominal current	1.6A; 0.8A
No load speed	6000rpm
Nominal speed	5000rpm
Permissible load range	0.3N.m ~ 3.0N.m for S1 duty cycle
Nominal power	13.1W;13.5W
IP rating	up to IP68

Gear motor mounting sizes:

12V 36mm PM Gearhead DC Motor , 24 Volt DC Planetary Geared Motor With Shaft 6mm 0

Gear motor technical data:

Reduction ratio	3.7	5.2	14	19	27	51	71	100	115	139	181	219	254	306	354
Number of gear trains	1	1	2	2	2	3	3	3	3	3	4	4	4	4	4
Length mm	26.5	26.5	33.6	33.6	33.6	40.5	40.5	40.5	40.5	40.5	47.4	47.4	47.4	47.4	47.4
No-load speed rpm	1617	1158	429	316	222	118	85	60	52	43	33	27	24	20	17
Rated speed rpm	1346	965	357	263	185	98	70	50	43	36	28	23	20	16	14
Rated torque N.m	0.081	0.12	0.28	0.38	0.49	0.93	1.3	1.8	2.1	2.5	2.9	3	3	3	3
Max permissible load in a short time N.m	1	1	3.5	3.5	3.5	7.5	7.5	7.5	7.5	7.5	9	9	9	9	9

This gear reduction DC motor adopts a planetary gear box design, the products are widely used in robot arm, embossing machines, printing machines, ovens, telescopic rods, massage chair etc.

Dimension:

Motor diameter: 36mm ( customizable )

shaft length: 20 mm ( customizable )

shaft diameter: 6mm ( customizable )

Provide motor size, lead requirements, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.

Application cases of the dc gear motor:

Rearview Mirror/Retractable Mirror/Head Light Beam Level Adjuster

Side Mirror/Door Lock/Damper Actuator

Headrest Adjuster / Door Closer / Washer Pump / Water pump
