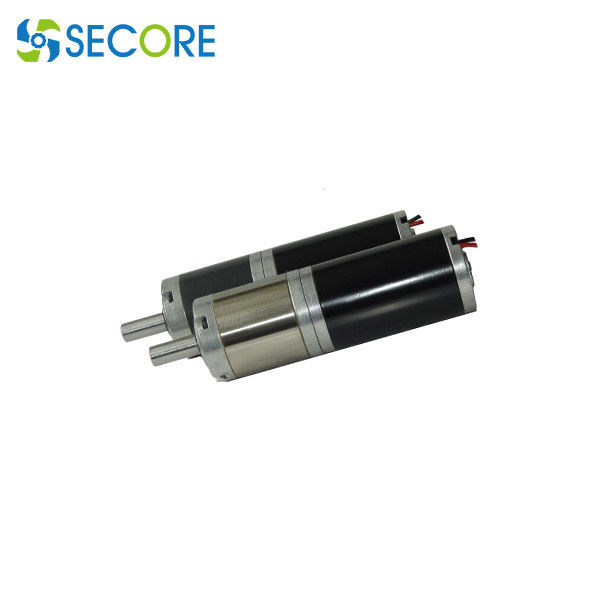

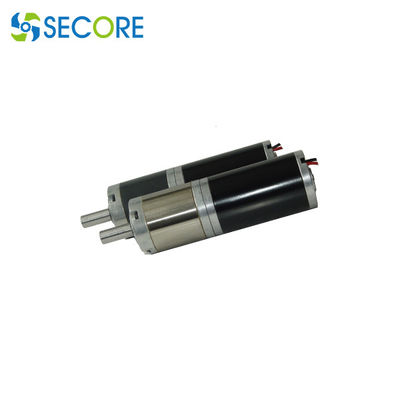

20W Permanent Magnet DC Reduction Gear Motor , Planetary 24V DC Gear Motor For Camera
20W Permanent Magnet DC Reduction Gear Motor , Planetary 24V DC Gear Motor For Camera
Contact Now

20W Permanent Magnet DC Reduction Gear Motor , Planetary 24V DC Gear Motor For Camera

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: DC4275-GB

Detail Information
No Load Speed: 3000rpm Or Customized Gear Ratio: 1:3.7 ~1:720
Motor Diameter: 42mm Permissible Torque Range: 1.0N.m~10N.m
Keyword: 24V Dc Gear Motor, 24V Brush Commutated Planetary Gear Motor Typical Application: Flow Control Valves, Seismic Testing, Automatic Reclosing
High Light:

24V dc reduction gear motor

,

20W dc reduction gear motor

,

20W 24v dc gear motor

Product Description

24V 20W Tubular Powerful Permanent Magnet Dc Reduction Gear Motor Planetary For Camera



Main features:



Motor type Brush commutated DC motor
Gearbox type Planetary
Diameter Gearbox: 42mm; DC motor:42mm
Nominal voltage 12V/24V DC or customized
Gear ratio 1:3.71 ~1:427
No load current 0.15A; 0.2A
Nominal current 0.75A; 1.2A
No load speed 3000rpm; 4000rpm
Nominal speed 2500rpm; 3500rpm
Permissible load range 1.0N.m ~ 10.0N.m for S1 duty cycle
Nominal power 11.5W; 20W
IP rating up to IP68



Motor Mounting Sizes:



20W Permanent Magnet DC Reduction Gear Motor , Planetary 24V DC Gear Motor For Camera 0



Motor Technical parameters:



Model Rated voltage VDC No-load speed r/min No-load current mA Rated speed r/min Rated torque mN.m Output power W Rated current A Stall torque mN.m Stall current A
DC4275-2430 24 3000 0.15 2500 44 11.5 0.75 259 3.55
DC4275-2440 24 4000 0.2 3500 55 20 1.2 360 6.3


Gear motor technical parameters for DC4275-2430:



Reduction ratio 3.71 5.18 14 19 27 51 71 100 139 181 219 254 306 354 427
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4 4 4 4
Length mm 31.5 31.5 42.1 42.1 42.1 52.5 52.5 52.5 52.5 62.9 62.9 62.9 62.9 62.9 62.9
No-load speed rpm 809 579 214 158 111 59 42 30 22 17 14 12 9.8 8.5 7
Rated speed rpm 674 483 179 132 93 49 35 25 18 14 11 9.9 8.2 7.1 5.9
Rated torque N.m 0.15 0.21 0.5 0.68 0.96 1.6 2.3 3.2 4.5 5.2 6.3 7.3 8.8 10 10
Max permissible load in a short time N.m 3 3 12 12 12 25 25 25 25 30 30 30 30 30 30


Gear motor technical parameters for DC4275-2430:



Reduction ratio 3.71 5.18 14 19 27 51 71 100 139 181 219 254 306 354
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4 4 4
Length mm 31.5 31.5 42.1 42.1 42.1 52.5 52.5 52.5 52.5 62.9 62.9 62.9 62.9 62.9
No-load speed rpm 1078 772 286 211 148 78 56 40 29 22 18 16 13 11
Rated speed rpm 943 676 250 184 130 69 49 35 25 19 16 14 11 9.9
Rated torque N.m 0.18 0.26 0.62 0.85 1.2 2.1 2.9 4 5.6 6.5 7.8 9.1 10 10
Max permissible load in a short time N.m 3 3 12 12 12 25 25 25 25 30 30 30 30 30




Dimension:

Motor diameter: 42mm ( customizable )

shaft length: 27 mm  ( customizable )

shaft diameter: 10mm  ( customizable )

Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.



About us



Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.



20W Permanent Magnet DC Reduction Gear Motor , Planetary 24V DC Gear Motor For Camera 1



20W Permanent Magnet DC Reduction Gear Motor , Planetary 24V DC Gear Motor For Camera 2



20W Permanent Magnet DC Reduction Gear Motor , Planetary 24V DC Gear Motor For Camera 3







Typical Application:



Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.
