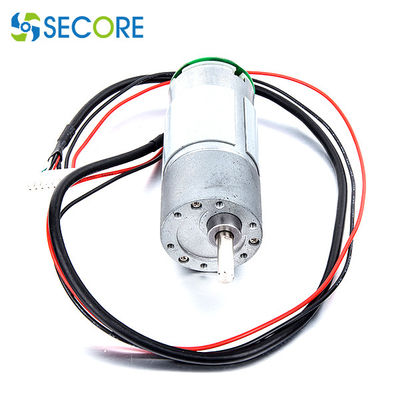

Customized DC Spur Gear Motor 9V - 24V 15W All Metallic High Torque With Encoder

Name: Customized DC Spur Gear Motor 9V - 24V 15W All Metallic High Torque With Encoder
Brand: SECORE
SKU: DC2933-33GB
Price: 1 USD
Availability: InStock
Rating: 4.7 (132 reviews)

Minimum Order Quantity :	500	Packaging Details :	100pcs per carton or as request
Delivery Time :	10-12 working days	Payment Terms :	D/P, T/T,, Western Union, L/C

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	DC2933-33GB

Detail Information
Rated Voltage:	12V Or Per Request	Free Load Speed:	19rpm~800rpm
Rated Speed:	18rpm~600rpm	Rated Torque:	0.06-1.1mN.m
Application:	Portable Printer, Smart Robot, Smart Toilet	Product Name:	Spur Gear Head Motor, Lock Gear Motor
Motor Size:	D29mm*L33mm/38mm/47mm	Spur Gear Size:	D33mm*L18.5/20.5/23mm
High Light:	Customized DC Spur Gear Motor , High Torque Spur Gear Motor , Metallic spur gearhead

Product Description

9V 12V 15V 24V 15W All Metallic High Torque Customized Dc Spur Gear Motor With Encoder Hall

Secore DC Brush Gear motor DC2733-33GB main features:

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				STALL		Gear length (L1)	Matching motor	Motor length (L2)
MODEL	VOLTAGE	SPEED RPM	CURRENT A	SPEED RPM	TORQUE mN.m	CURRENT A	Output W	TORQUE mN.m	CURRENT A	mm	Model	mm
DC2933-33GB	9	725	0.47	614	0.06	1.1	3.78	0.38	3	18.5	DC2933	32.6
DC2933-33GB	12	107	0.22	69	0.29	0.72	2.12	0.67	1.6	18.5	DC2933	32.6
DC2933-33GB	15	39	0.16	29.2	0.35	0.3	1.07	1.12	0.7	20.5	DC2933	32.6
DC2933-33GB	12	18	0.13	13.6	1.08	0.18	1.52	4.71	1.6	23	DC2933	32.6
DC2938-33GB	12	400	0.16	290	0.14	0.75	4.31	0.52	4	18.5	DC2938	38
DC2938-33GB	24	300	0.25	226	0.49	1.2	11.47	1.96	6.5	18.5	DC2938	38
DC2938-33GB	12	65	0.16	47.6	0.79	0.75	3.9	2.84	2.7	20.5	DC2938	38
DC2947-33GB	24	19	0.16	18.1	0.62	0.18	1.16	8.53	2	23	DC2947	46.8

Customized DC Spur Gear Motor 9V - 24V 15W All Metallic High Torque With Encoder 0

Customized DC Spur Gear Motor 9V - 24V 15W All Metallic High Torque With Encoder 1

What is spur gear motor?

The structure of a spur gear head consists of larger gears meshing with smaller gears. The gears are mounted on shafts parallelly, but offset from each other. The meshing of the smaller gear with the larger gear reduces the rotational speed, converting it into torque. The pitch of the gear tooth is decisive of the final output speed and torque of the gear motor. Increasing multiple gear stages within the gear head leads to larger reduction ratio, resulting in lower output speeds and higher output torques. It has only one contact point at anytime which means any load is totally carried by the only contact point between two gears.

Application: Spur gear motors are a cost-efficient solution for low torque and low speed applications such as Intelligent robots, household appliances, kitchen and bathroom, coffee machine, vending machine, smart toilet, electric curtain.
