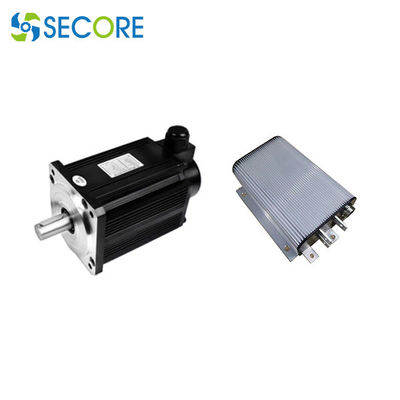

2400W 3.2HP 48V Brushless Motor 7.8Nm 3000rpm Bldc Motor Kit
2400W 3.2HP 48V Brushless Motor 7.8Nm 3000rpm Bldc Motor Kit 2400W 3.2HP 48V Brushless Motor 7.8Nm 3000rpm Bldc Motor Kit 2400W 3.2HP 48V Brushless Motor 7.8Nm 3000rpm Bldc Motor Kit 2400W 3.2HP 48V Brushless Motor 7.8Nm 3000rpm Bldc Motor Kit
Contact Now

2400W 3.2HP 48V Brushless Motor 7.8Nm 3000rpm Bldc Motor Kit

Minimum Order Quantity : 1 Price : Negotiated The Price
Packaging Details : 1PC per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 6000pcs per month
Place of Origin: CHINA Brand Name: SECORE
Certification: CE ROHS Model Number: BLS130-2400W

Detail Information
MOQ: 1 PC Rated Speed RPM: 2000 R/m
Rated Torque: 7.8 N.m Commutation: Brushless
Rated Power: 2400W, 3100w 4700w Optional Rated Voltage: 48V, 72V, 96V Optional
Dimension: 130mm Diameter * 201mm Length Construction: Pernanent Magnet
Product Type: 2400W Brushless Motor, 2300rpm BLDC Motor Typical Application: Tricycle, Electric Car, AGV, Electric Bicycle, Robot
High Light:

2400W 48V Brushless Motor

,

3.2HP 48V Brushless Motor

,

3000rpm Bldc Motor Kit

Product Description

2400W 3.2HP 48V Brushless Motor, 3000rpm 7.8Nm Bldc Motor kit





SPECS / Continuous rating for 130mm frame 2400W brushless motor



Model number Voltage V Power W Rated speed
rpm		 Rated current
A		 Rated torque
N.m		 No-load
speed rpm		 Peak Torque
N.m
电机型号 电压 V 功率 W 额定转速 rpm 额定电流 A 额定转矩 N.m 空载转速 rpm 最大转矩 N.m
BLS130-2400W-2430 24 2400 3000 118.7 7.8 3600 23
BLS130-2400W-4830 48 2400 3000 59.4 7.8 3600 23
BLS130-2400W-7230 72 2400 3000 39.6 7.8 3600 23
BLS130-2400W-9630 96 2400 3000 29.7 7.8 3600 23





Model number Voltage V Power W Rated speed
rpm		 Rated current
A		 Rated torque
N.m		 No-load
speed rpm		 Peak Torque
N.m
电机型号 电压 V 功率 W 额定转速 rpm 额定电流 A 额定转矩 N.m 空载转速 rpm 最大转矩 N.m
BLS130-3100W-2430 24 3100 3000 154.1 10 3600 30
BLS130-3100W-4830 48 3100 3000 77.2 10 3600 30
BLS130-3100W-7230 72 3100 3000 51.4 10 3600 30
BLS130-3100W-9630 96 3100 3000 38.6 10 3600 30



Model number Voltage V Power W Rated speed
rpm		 Rated current
A		 Rated torque
N.m		 No-load
speed rpm		 Peak Torque
N.m
电机型号 电压 V 功率 W 额定转速 rpm 额定电流 A 额定转矩 N.m 空载转速 rpm 最大转矩 N.m
BLS130-4700W-2430 24 4700 3000 231 15 3600 40
BLS130-4700W-4830 48 4700 3000 115.6 15 3600 40
BLS130-4700W-7230 72 4700 3000 77.2 15 3600 40
BLS130-4700W-9630 96 4700 3000 57.8 15 3600 40



Dimension of 2400W brushless dc motor



2400W 3.2HP 48V Brushless Motor 7.8Nm 3000rpm Bldc Motor Kit 0



Customizable accessories



Accessories Customizable
Motor length Yes
Shaft Yes
Speed Yes
Voltage Yes
Power Yes
lead wire Yes
Control Yes
