B Insulation 0.75A Brushless Dc Motor 42mm Bldc Robot Motor 12V 24V 36V

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 20PC per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 6000pcs per month
Place of Origin: CHINA Brand Name: SECORE
Certification: CE ROHS Model Number: SC-42S04-24V

Detail Information

MOQ: 100PCS Nominal Voltage: 24V
No Load Speed RPM: 5800RPM ±10% No Load Current: 0.75A Max
Poles: 8 Phase: 3
Torque Constant: 0.04 N.m/A Back EMF Constant: 4.1V/kRPM
Rated Speed: 4000rpm±10% Rated Torque: 0.25N.m
High Light:

B Insulation Brushless Dc Motor

,

0.75A Brushless Dc Motor

,

Bldc Robot Motor

Product Description

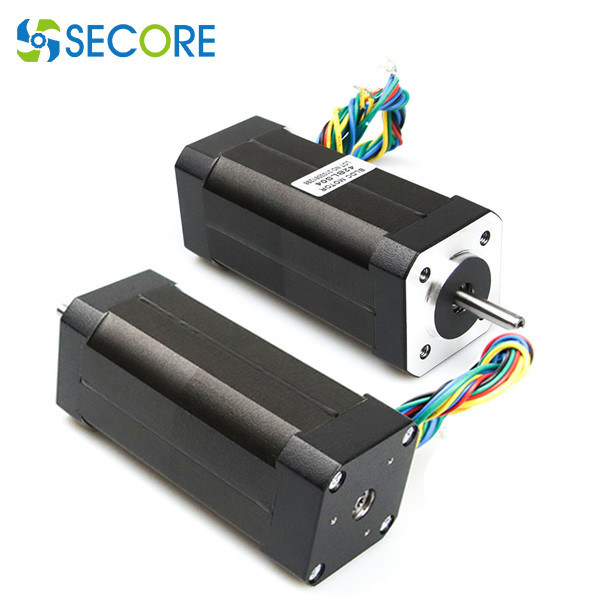

Square Brushless Dc Motor 42mm Bldc Robot Motor 12V 24V 36V



SPECS / Continuous rating for 42mm 24V brushless motor



Model number SC42BLS04
Number of Poles 8
Phase to phase resistance 0.36 OHMS
Free load speed 5800RPM ±10%
Free load current 0.75A Max
Nominal voltage 24 VDC
Rated speed 4000RPM ±10%
Rated torque 0.25N.m
Output power 105W
Torque constant 0.04 N.m/A
Back EMF constant 4.1V/kRPM
Insulation Class B

B Insulation 0.75A Brushless Dc Motor 42mm Bldc Robot Motor 12V 24V 36V 0B Insulation 0.75A Brushless Dc Motor 42mm Bldc Robot Motor 12V 24V 36V 1

B Insulation 0.75A Brushless Dc Motor 42mm Bldc Robot Motor 12V 24V 36V 2



B Insulation 0.75A Brushless Dc Motor 42mm Bldc Robot Motor 12V 24V 36V 3

B Insulation 0.75A Brushless Dc Motor 42mm Bldc Robot Motor 12V 24V 36V 4B Insulation 0.75A Brushless Dc Motor 42mm Bldc Robot Motor 12V 24V 36V 5



B Insulation 0.75A Brushless Dc Motor 42mm Bldc Robot Motor 12V 24V 36V 6
