Product Description

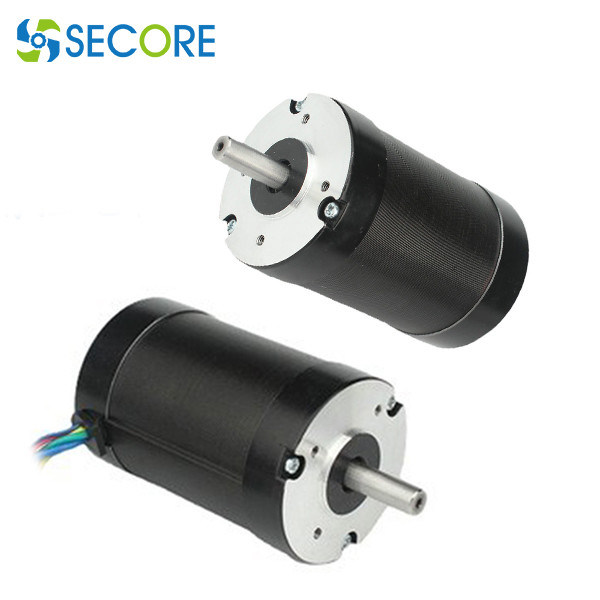

57mm diameter 180W bldc motor adjustable speed 3000-10000rpm with controller for feeding machine
SPECS / Continuous rating for 57mm 180w brushless motor
Customized brushless motor 24V, 36V, 48VDC
Electronic customization: Winding custom
Mechnical customization: Various shaft types include knurled, hobbing, shaft pin, threaded shaft, shaft hole, D-Shaft, Double D shaft, key slot etc.
| Phase to phase resistance |
0.45 OHMS |
| Free load speed |
5200RPM ±10% |
| Free load current |
0.7A Max |
| Nominal voltage |
36VDC |
| Rated speed |
4000RPM ±10% |
| Rated torque |
0.43N.m |
| Output power |
180W |
| Torque constant |
0.063N.m/A |
| Back EMF constant |
6.6V/kRPM |
| Insulation Class |
B |
| +5V |
red |
24AWG
UL1007 |
| HALL U |
blue |
| HALL V |
green |
| HALL W |
white |
| GND |
black |
| PHASE U |
yellow |
20AWG
UL1007 |
| PHASE V |
red |
| PHASE W |
black |
The brushless DC motor is composed of a motor body and a driver, and is a typical mechatronic product. Brushless motor refers to the motor without brush and commutator (or slip ring), also known as commutator-less motor.
Brushless motor main features and advantages:
1. A comprehensive replacement of DC motor speed control, a comprehensive replacement of frequency converter + variable frequency motor speed control, a comprehensive replacement of asynchronous motor + reducer speed control;
2. It has all the advantages of the traditional DC motor, and at the same time removes the carbon brush and slip ring structure;
3. It can run at low speed and high power, and it can save the speed reducer to directly drive a large load;
4. Small size, light weight, and large output;
5. Excellent torque characteristics, good medium and low speed torque performance, large starting torque and small starting current;
6. Stepless speed regulation, wide speed regulation range, strong overload capacity;
7. Soft start and stop, good braking characteristics, can save the original mechanical braking or electromagnetic braking device;
8. High efficiency, the motor itself has no excitation loss and carbon brush loss, eliminating multi-stage deceleration consumption, and the comprehensive power saving rate can reach 20%~60%. Only the power saving item can offset the purchase cost in one year;
9. High reliability, good stability, strong adaptability, simple repair and maintenance;
10. Resistance to turbulence and vibration, low noise, low vibration, smooth operation and long life;
11. No radio interference, no sparks, especially suitable for explosive places, with explosion-proof type;
12. Trapezoidal wave magnetic field motor and sine wave magnetic field motor can be selected as required.
