4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 20PC per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 6000pcs per month
Place of Origin: CHINA Brand Name: SECORE
Certification: CE ROHS Model Number: SC-42S01

Detail Information

MOQ: 100PCS Nominal Voltage: 12V
Rated Speed RPM: 4000RPM ±10% Rated Torque: 0.625kg.cm
Output Power: 26W Commutation: EC
Motor Size: 42*42*41mm Construction: Pernanent Magnet
Product Type: Square Bldc Motor 42mm, Brushless Dc Motor 12V Typical Application: Cd Player, Record Player, Auto Parts, Smart Home
High Light:

4000rpm Square Bldc Motor

,

Permanent Magnet Square Bldc Motor

,

26W Permanent Magnet DC Motor

Product Description

4000rpm 12V 24V Square/Round Bldc Motor With 120 Degree Electrical Angle For Record Player





SPECS / Continuous rating for 41mm frame 26W brushless motor




Model No unit Model
SC42BLS01 SC42BLS02 SC42BLS03 SC42BLS04
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 24
Rated Speed R/M 4000
Rated Torque N.m 0.0625 0.125 0.185 0.25
Rated Current A 1.8 3.3 4.8 6.3
Rated Power W 26 52.5 77.5 105
Peak Torque N.m 0.19 0.38 0.56 0.75
Peak Current A 5.4 10.6 15.5 20
Back E.M.F V/Krpm 4.1 4.2 4.3 4.3
Torque Constant N.m/A 0.039 0.04 0.041 0.041
Rotor Inertia g.cm² 24 48 72 96
Body Length mm 41 61 81 100
Weight Kg 0.3 0.45 0.65 0.8
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70*C
Operating Temperature -15 +50*C
Working Humidity =85% RH
Working Environment No direct sunlight, non corrosive gas^flammable gas, oil mist, no dust

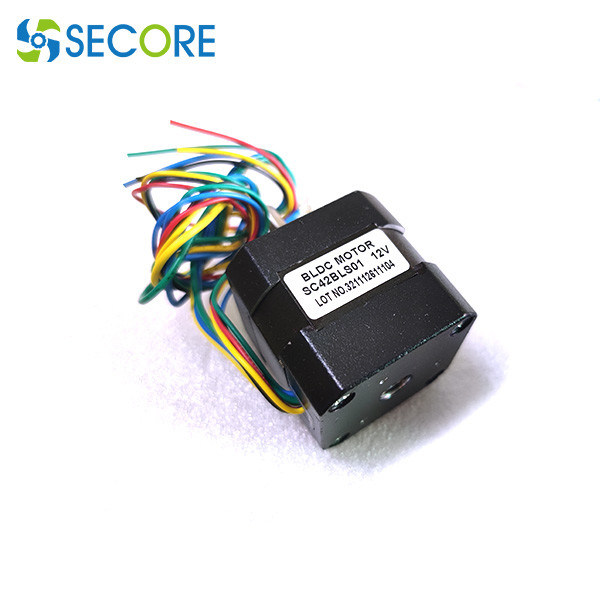

4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle 0

4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle 1



4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle 2
