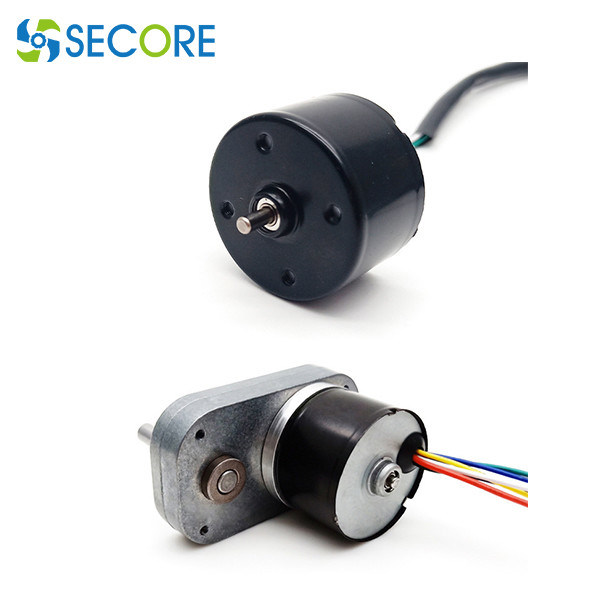

BLDC 280mA Water Pump Bldc Motor 36mm Brushless Low Noise

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-3625

Detail Information

Free Load Speed: 4500rpm Rated Speed: 3650rpm
Rated Torque: 50g.cm Continuous Current: 280mA
Dimension: ∮36* Length 22(mm) Type: 36mm BLDC Motor
Typical Application: Robot, Water Pump, Electric Lock Efficiency: IE 1
High Light:

BLDC Water Pump Bldc Motor

,

280mA Water Pump Bldc Motor

,

Low Noise Bldc Gear Motor

Product Description

Built-In Driver 36mm Brushless Motor Low Noise Water Pump Bldc Motor

DC Brushless inner rotor Motors :

Size: diameter 36*22mm length
Built-in driver
PWM pulse wide speed range
FG speed feedback signal
Low EMC,Low noise
Power: 15W ( internal driver )


Model #RATED VoltageNO LOADAT MAXIMUM EFFICIENCYSTALL
SPEEDCURRENTSPEEDTORQUECURRENTOut. PowerTORQUECURRENT
VDC±10% r/minmA±10% r/ming.cmmAWg.cmA
BLS-3625-12124500903650502801.92801.25
BLS-3625-24244500603700501601.93100.65


Motor dimensions
BLDC 280mA Water Pump Bldc Motor 36mm Brushless Low Noise 0
BLDC 280mA Water Pump Bldc Motor 36mm Brushless Low Noise 1

BLDC 280mA Water Pump Bldc Motor 36mm Brushless Low Noise 2
BLDC 280mA Water Pump Bldc Motor 36mm Brushless Low Noise 3

A Brushless motor overcomes the need of a mechanical commutator by reversing the motor set-up; The windings become the stator and the permanent magnets become part of the rotor. The stator typically consists of steel laminations, slotted axially to accommodate an even number of windings along their inner perimeter. The rotor consists of a shaft and a hub with permanent magnets arranged in two to eight pole pairs alternating between "N" and "S". Because the windings are fixed, a permanent connection can be made to energize them. In order for the stationary windings to move the permanent magnets, the windings need to be energized (or commutated) in a controlled sequence to produce rotating magnetic.
