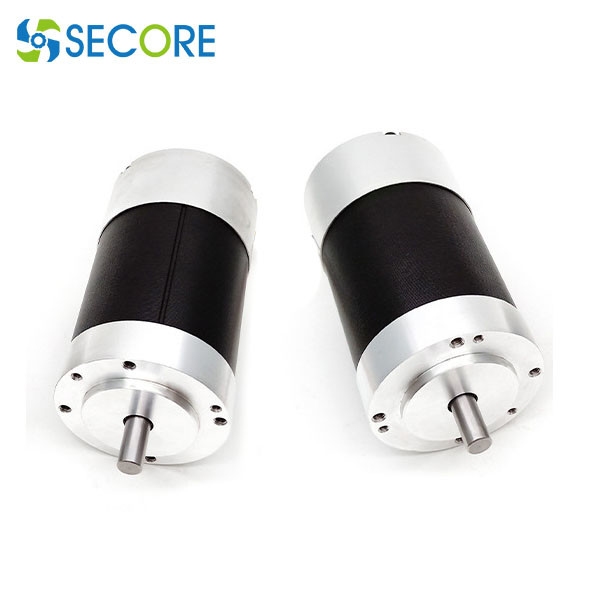

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	20pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	China,Guangdong	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLS-57100

Detail Information
No Load Speed:	3500rpm	Rated Speed:	3050rpm
Rated Torque:	400g.cm	Stalling Torque:	3200g.cm
Continuous Current:	1.9A	Motor Dimensions:	57-100mm ( Diameter * Length)
Product Name:	Mower Bldc Motor, 57mm High Torque Brushless Motor	Application:	Medical Equipment, Lawn Mower, Diaphragm Pump, Automation Device
High Light:	Medical Equipment Brushless DC Motor , 57mm Brushless DC Motor , BLDC Lawn Mower Motor

Product Description

12V External Drive Medical Equipment Brushless Motor 57mm BLDC Lawn Mower Motor

DC Brushless inner rotor Motors :

Size: diameter 56.5*100mm length

Outside driver

Power: 11W ( External driver )

Model #	RATED Voltage	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	RATED Voltage	SPEED	CURRENT	SPEED	TORQUE	CURRENT	Out. Power	TORQUE	CURRENT
	VDC	±10% r/min	mA	±10% r/min	g.cm	mA	W	g.cm	A
BLS-56100-12	12	3500	600	3050	400	1900	12.5	3200	4.5
BLS-56100-24	24	3500	300	3050	400	1000	12.5	3200	4.5

Motor dimensions

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor 0

Performance curve

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor 1

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor 2

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor 3

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor 4

Brushless motor basics

BLDC motors overcome the need for a mechanical commutator by reversing the motor setup; the windings become the stator and the permanent magnets become part of the rotor. The stator typically consists of steel laminations, slotted axially to accommodate an even number of windings along their inner perimeter. The rotor consists of a shaft and a hub with permanent magnets arranged in two to eight pole pairs alternating between "N" and "S". Because the windings are fixed, a permanent connection can be made to power them. In order for the stationary windings to move the permanent magnets, the windings need to be energized (or commutated) in a controlled sequence to generate a rotating magnetic field.
