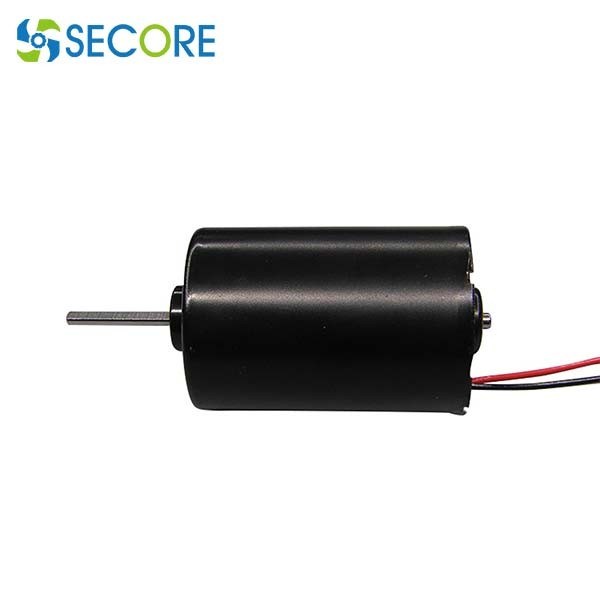

Small Size Brushless Dc Motor 24V Dual Shaft Bldc Motor 2847 For AR Glass

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: ISO9901 Model Number: BLS-2847I

Detail Information

No-load Speed: 20500RPM Or Customized Rated Speed: 18000rpm Or As Per Request
Rated Torque: 200g.cm Continuous Current: 1.3A
Motor Sizes: Φ28*47(mm)diameter*length Construction: Permanent Magnet
Commutation: Brushless, EC Typical Application: AG Glass, Smart Home
High Light:

Small Size Brushless Dc Motor 24V

,

Dual Shaft Bldc Motor 2847

,

AR Glass Bldc Motor

Product Description

Small Size Pump Motor Brushless Dc Motor 24V Dual Shaft Bldc Motor 2847 For AR Glass

Performance and features Of Miniature inner rotor bldc motor



1. Multiple voltage option: 3~48V, 310V

2. Multiple speed options: 5-100000rpm

3. Torque: 0.05kg.cm~600kg.cm

4. Shaft: D shape, dual-D, key slot, knurled, screw, hobbing, shaft hole, shaft pin

5. Commutation: brush, brushless

6. Application:  Office Equipments, Air Purification Systems, Water Treatment Systems, Medical Equipments, Logistic Transmission Systems, Mechanical Equipments, Solar Tracking Equipments.



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
RPM
CURRENT
A
SPEED
RPM
TORQUE
gf.cm
CURRENT
A
TORQUE
gf.cm
CURRENT
A
BLS-2847I 24 3700 0.08 2800 200 0.65 820 1.6
BLS-2847I 32 20500 0.14 18050 200 1.3 1000 5.1




Motor dimensions
 Small Size Brushless Dc Motor 24V Dual Shaft Bldc Motor 2847 For AR Glass 0

Performance curve

Small Size Brushless Dc Motor 24V Dual Shaft Bldc Motor 2847 For AR Glass 1

Typical Application


Small Size Brushless Dc Motor 24V Dual Shaft Bldc Motor 2847 For AR Glass 2





How to choose the most suitable motor?



  • Voltage: determines the working conditions of the motor application
  • Speed: RPM required to operate at rated voltage
  • Torque: how much N.m is needed under rated voltage, and how much N.m is needed when stopping operation
  • Size restrictions: the size of your installation space
  • Output shaft: can be customized according to different installation requirements, shaft diameter, length, threaded shaft, D shaft, double flat shaft, single flat shaft, spring shaft, keyway shaft, etc.
