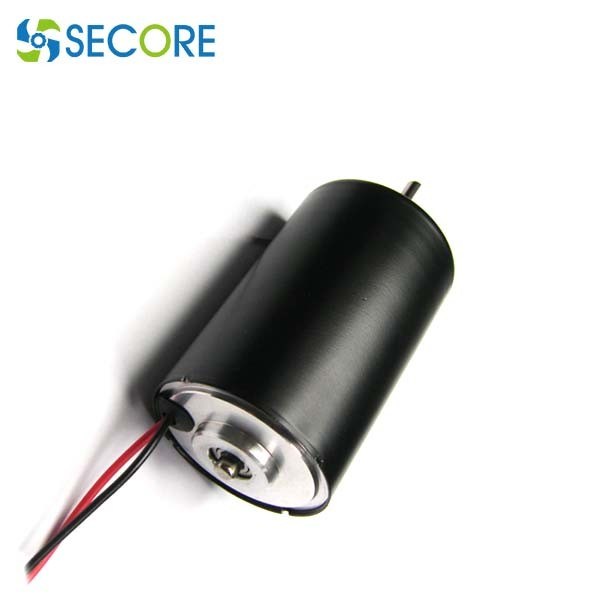

30W High Power 24VDC Brushless Motor Fan Bldc Motor For Ventilation Equipment

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	50pcs per carton or as request	Delivery Time :	8-10 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Dongguan	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLS-4266I

Detail Information
Motor Dimension:	∮42*L66（mm）	Speed Rated:	2400 R/min
No Load Speed:	3200rpm	Rated Torque:	1000g.cm /1kg.cm
Rated Current:	1.30A	Model Number:	BLS-4266I
Commutation:	Ec Commutating	Shaft OD:	5mm Or Customize
Type:	24 Volt Brushless Dc Motor, Micro Brushless Motor	Typical Application:	Conditioning Damper Actuator, Car DVD, Door Lock
High Light:	High Power 24VDC Brushless Motor , 30W Fan Bldc Motor , Ventilation Equipment Fan Bldc Motor

Product Description

30W High Power 24VDC Brushless Motor Fan Bldc Motor For Ventilation Equipment BLDC Motor

Features of Micro BLDC Motor BLS-4266:

1. PWM speed adjust

2. FG output

3. Lock detect protection

4. Over current protection

5. Standby mode

6. Internal UVLO and thermal shutdown circuitry

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY			STALL
MODEL	VOLTAGE	SPEED RPM	CURRENT A	SPEED RPM	TORQUE gf.cm	CURRENT A	TORQUE gf.cm	CURRENT A
BLS-4266I	24	3200	0.13	2400	1000	1.3	3980	4.8

Dimension of the bldc motor:

30W High Power 24VDC Brushless Motor Fan Bldc Motor For Ventilation Equipment 0

Performance curve:

Our services:

We provide one-stop solution for DC Motor / Gear motors, various diameter and power options ( 7mm to 92mm diameter for Brush motor, 16mm to 180mm diameter for BLDC motor. Power from 5W to 10000W ) for DC Micro Brush Motor, brushless and Gear Motor, Coreless motor.

Tiny Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, DC Brushless Motor, Worm gear motor, Spur Gear Motor, Micro Motor, planetary motor, Vibration Motor, coin motor Etc.
