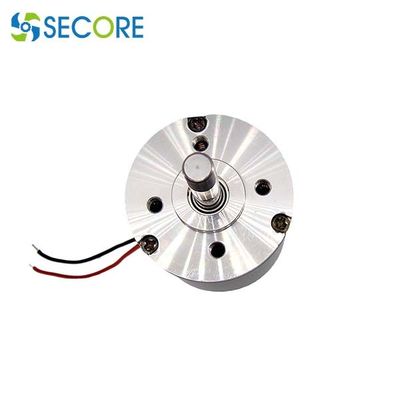

Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 20pcs per carton or as request Delivery Time : 8-10 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: ISO9001 Model Number: BLS-5067I

Detail Information

Motor Dimension: ∮50*L67(mm) Speed Rated: 4600 R/min
No Load Speed: 5600rpm Rated Torque: 1050g.cm /1.05kg.cm
Rated Current: 3.65A Model Number: BLS-5067I
Commutation: Ec Commutating Shaft OD: 8mm Or Customize
Type: High Rpm Bldc Motor, High Torque Brushless Motor Typical Application: Fitness Equipment, Power Tool, Industrial Usage
High Light:

Industrial Bldc Motor Power Tool 5067

,

5067 Brushless Dc Motor

,

Industrial 5600rpm EC Motor

Product Description

Industrial Application Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor

Features of BLDC Motor BLS-5067:



  1. Diameter: 50mm
  2. Length: 67mm
  3. Shaft: 8mm or customization
  4. Customization: voltage,speed,torque, shaft, housing material, encoder, brake etc.




Motor Model BLS-5067I Unit
Nominal voltage 16.8 V
No load speed ±12% 5600 rpm
Max cont.torque 105 mN.m
Rated Speed 4600 rpm
Rated Current 3.65 A
Stall Torque 507.5 mN.m
Stall current 15.3 A


Dimension of the bldc motor:

Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor 0

Performance curve:

Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor 1


Shaft customization cases:

 Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor 2

Typical Application

Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor 3
