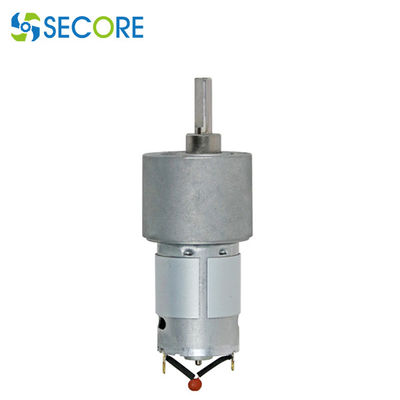

2N.M 3N.M Torque 6v Low Speed Spur Gear Reduction Motor 385 Dc Motor With Gearbox

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 15-20 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC2737-37GB

Detail Information

Rated Speed: 18RPM Or Customized Rated Voltage: 6V
Rated Torque: 2.73N.m Motor Sizes: 30*37.6mm
Gear Box Dimension: 30*37mm Motor Type: Parallel Shaft Gear Motor 37mm
Product Nam20rpm Gear Motor, 60rpm Bldc Worm Gear Motore: 200rpm Worm Gear Motor, Bldc Worm Gearbox Motor Typical Application: Robot, Billboard, Drying Rack, Coffee Machine, Range Hood
High Light:

3N.M Torque Gear Reduction Motor

,

Low Speed Spur Gear Reduction Motor

,

18RPM 6V Gear Reduction Motor

Product Description

2N.M 3N.M Torque 6v Low Speed Spur Gear Reduction Motor 385 Dc Motor With Gearbox

Secore provides customized service on technical parameters such as speed, voltage, torque.

Main characteristics on DC2737-37GB gear motor:




MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY AT MAXIMUM POWER STALL
SPEED
RPM
CURRENT
A
SPEED
RPM
TORQUE
kgf.cm
CURRENT
A
SPEED
RPM
TORQUE
kgf.cm
POWER
W
TORQUE
kgf.cm
CURRENT
A
DC3037-37GB 12 15 0.4 13 20.7 1.23 10 30.4 57.8 35.2 4.82
DC3037-37GB 24 38 0.25 35 16.5 0.9 32 62.4 84.96 62.4 3.54





MODEL VOLTAGE Motor free load motor with gearbox (no load )
Current Speed torque Motor size gear ratio gearbox length current speed
DC3037-37GB 6 0.18 8000 0.135 37.6 10 16.8 0.54 800
DC3037-37GB 6 0.18 8000 0.135 37.6 30 20.2 0.54 266
DC3037-37GB 6 0.18 8000 0.135 37.6 50 20.2 0.54 160
DC3037-37GB 6 0.18 8000 0.135 37.6 90 20.2 0.54 89
DC3037-37GB 6 0.18 8000 0.135 37.6 150 20.2 0.54 53
DC3037-37GB 6 0.18 8000 0.135 37.6 167 20.2 0.54 48
DC3037-37GB 6 0.18 8000 0.135 37.6 270 20.2 0.54 29
DC3037-37GB 6 0.18 8000 0.135 37.6 450 20.2 0.54 18
DC3037-37GB 6 0.18 8000 0.135 37.6 810 20.2 0.54 10
DC3037-37GB 6 0.18 8000 0.135 37.6 1350 20.2 0.54 6
DC3037-37GB 6 0.18 8000 0.135 37.6 2430 20.2 0.54 3.3





MODEL VOLTAGE max efficiency   Noise At stall
current speed torque output power dB current moment of force
DC3037-37GB 6 2.16 560 0.8 12.96 65 10.8 2.3
DC3037-37GB 6 0.6 213 2.3 3.6 65 3 7
DC3037-37GB 6 2.16 128 3.9 12.96 65 10.8 11.7
DC3037-37GB 6 2.16 71 7 12.96 65 10.8 21.1
DC3037-37GB 6 2.16 43 11.7 12.96 65 10.8 35.23
DC3037-37GB 6 2.16 38 13.1 12.96 65 10.8 39.2
DC3037-37GB 6 2.16 24 17.5 12.96 65 10.8 52.5
DC3037-37GB 6 2.16 14 27.3 12.96 65 10.8 82
DC3037-37GB 6 2.16 8 45.9 12.96 65 10.8 114.8
DC3037-37GB 6 2.16 4.7 54.7 12.96 65 10.8 136.7
DC3037-37GB 6 2.16 2.6 68.9 12.96 65 10.8 144.7

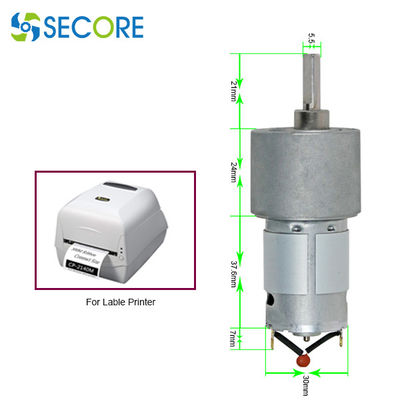

Motor mounting sizes and shafts options:



2N.M 3N.M Torque 6v Low Speed Spur Gear Reduction Motor 385 Dc Motor With Gearbox 0



Performance curve

2N.M 3N.M Torque 6v Low Speed Spur Gear Reduction Motor 385 Dc Motor With Gearbox 1



Optional Encoder



2N.M 3N.M Torque 6v Low Speed Spur Gear Reduction Motor 385 Dc Motor With Gearbox 2

Application cases



2N.M 3N.M Torque 6v Low Speed Spur Gear Reduction Motor 385 Dc Motor With Gearbox 3
