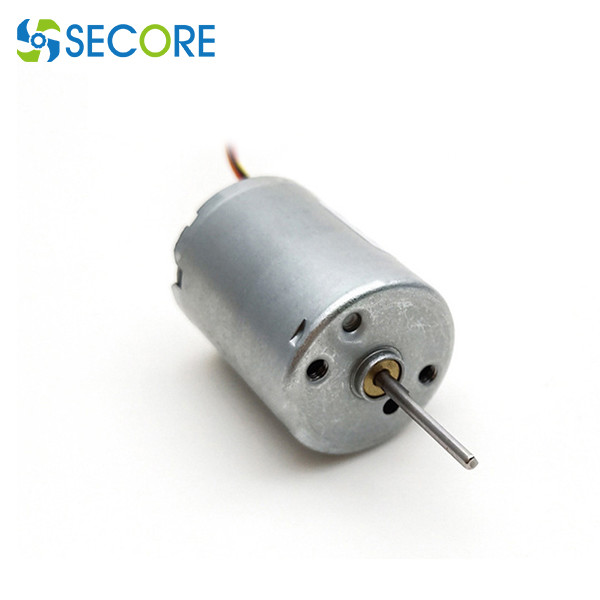

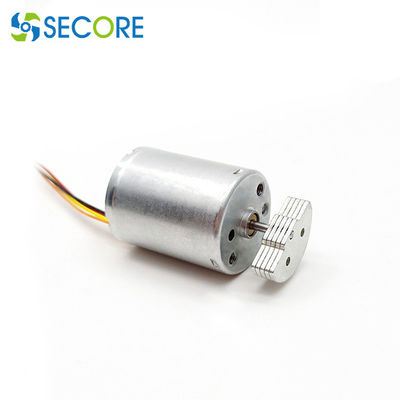

24x30mm 12V DC Brushless Motor 5000rpm NdFeB Magnet Mini BLDC Motor

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: RoHS Model Number: BLS-2430

Detail Information

Dimensions: OD24*L30(mm) Speed Rated: 4500rpm
Free Load Speed: 5500rpm Rated Torque: 50gf.cm
Rated Current: 330mA Model #: BLS-2430
Commutation: Brushless Type: Internal Rotor Motor, Waterproof Brushless Motor
Typical Application: Fast Feeders, Lithography Shaft Diameter: 2mm Or Customize
High Light:

NdFeB Magnet 12V DC Brushless Motor

,

12V DC Brushless Motor 5000rpm

,

NdFeB Magnet Mini BLDC Motor

Product Description

12V micro Dc Brushless Motor 24*30mm 24V 48V 5000rpm NdFeB Magnet Mini Bldc Motor



Secore motor 3.7V 6V 12v 14.4V 24v 48v micro high speed brushless dc motor

  • size:24*30mm;
  • high speed rotation: 5500rpm
  • low noise, low EMI, long lifetime;
  • CW & CCW, Signal function available;
  • Locked rotor protection, Stepless speed regulation.
MODEL VOLTAGE NO LOAD Rated STALL
SPEED
RPM
CURRENT
mA
SPEED
RPM
TORQUE
g.cm
CURRENT
mA
Output
W
TORQUE
g.cm
CURRENT
A
BL-2430 12 5500 90 4500 50 330 2.3 270 1.4
BL-2430 24 5500 50 4500 50 180 2.3 270 0.75


Dimension of the brushless motor:


24x30mm 12V DC Brushless Motor 5000rpm NdFeB Magnet Mini BLDC Motor 0



24x30mm 12V DC Brushless Motor 5000rpm NdFeB Magnet Mini BLDC Motor 1





The working principle of the brushless dc motor:



The brushless DC motor is composed of the motor body and the driver and is a typical mechatronic product. The working principle is the same as the brushed motor, except the traditional carbon brush and commutator replaced by the position sensor and controlling circuit, The control command is sent out through the sensing signal to complete the conversion of the current direction to realize the commutation work, to ensure that the motor generates a constant electromagnetic torque and steering, so that the motor rotates.ommutation, realize the commutation work, ensure that the motor generates a constant electromagnetic torque, and turn the motor to rotate.
