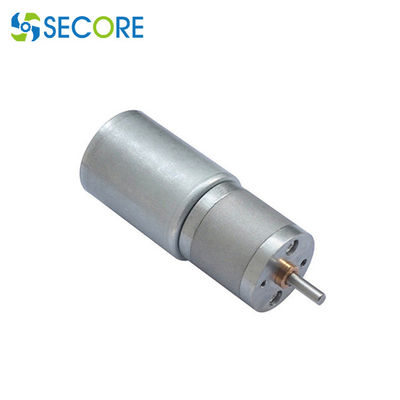

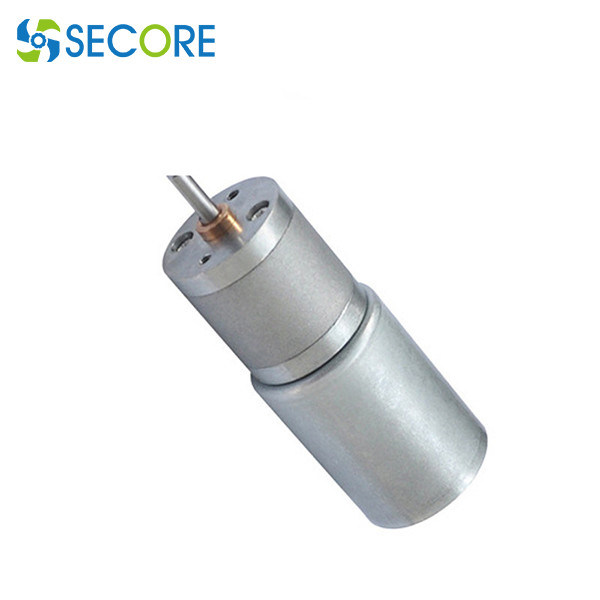

25mm Miniature DC Gear Motor 12V 24V Ball Bearing Brushless Dc Gearmotor

Name: 25mm Miniature DC Gear Motor 12V 24V Ball Bearing Brushless Dc Gearmotor
Brand: SECORE
SKU: BL2838-25GB
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (164 reviews)

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	500pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	RoHS	Model Number:	BL2838-25GB

Detail Information
Motor Size:	OD28*L38（mm）	Speed Rated:	10RPM
Free Load Speed:	12RPM	Rated Torque:	5kg.cm
Rated Current:	0.85A	Motor Type:	25mm Planetary Gear Motor
Typical Application:	Water Pump, Vacuum Pump,Oxyen Generator	Shaft Diameter:	3.175mm Or Customize
High Light:	25mm Miniature DC Gear Motor , Water Pump Miniature DC Gear Motor , Ball Bearing Brushless Dc Gearmotor

Product Description

Factory Supply 25mm Miniature DC Gear Motor 12V24V Ball Bearing Brushless Gear DC Motor

Secore bldcmotor 3.7V 6V 12v 14.4V 24v 48v small planetary brushless gear motor 2838-25GB

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				STALL		Gear length	with gearbox
MODEL	VOLTAGE	SPEED RPM	CURRENT mA	SPEED RPM	TORQUE g.cm	CURRENT mA	Output W	TORQUE g.cm	CURRENT A	mm	Free-load speed	rated speed	rated torque	stall torque
BL2838-25GB	12	6200	90	4800	20	180	1.4	105	0.75	29.5	12	10	5	10
BL2838-25GB	24	8700	70	7000	20	150	2.5	130	0.7	29.5	17	15	5	10

Dimension of the brushless motor:

Customized spares parts

1. Voltage, current, speed and torque.
2. Shape of shaft: "D" "Round" "Flat" "Hexagon Axis" "Square axis", shaft dimension
3. Bearing: ball bearing, oil bearing
4. Materials of shell: plastic metal etc
6. Optional equip with reducer, braker, encoder, controller, gearhead, driver etc
