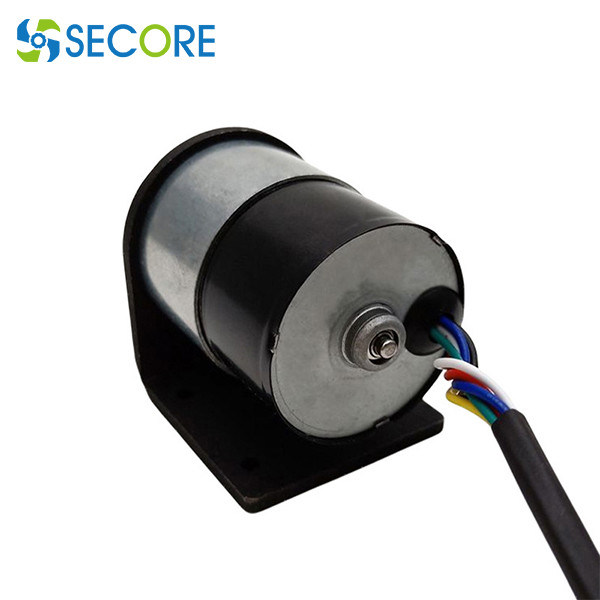

12V DC Brushless Gear Motor Automatic Window Automatic Door Micro Motor

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: RoHS Model Number: BL3625-37GB

Detail Information

Motor Dimension: 36mm*25mm Rated Votage: 12V
Speed Rated: 50RPM Or Customized Free Load Speed: 60RPM Or Customized
Rated Torque: 2kg.cm Rated Current: 1.3A
Motor Type: Micro Door Gear Brush Motor Typical Application: Electric Door, Automatic Door, Automatic Window
High Light:

12V DC Brushless Gear Motor

,

Automatic Window DC Brushless Gear Motor

,

Brushless Automatic Door Micro Motor

Product Description

Automatic Door Micro Motor DC Brushless Gear Motor 12V Automatic Window Gear Motor

Secore brushless gear motor 3625-37GB


MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
RPM
CURRENT
mA
SPEED
RPM
TORQUE
g.cm
CURRENT
mA
Output
W
TORQUE
g.cm
CURRENT
A
BL3625 12 4500 90 3650 50 280 1.9 280 1.25
BL3625 24 4500 60 3700 50 160 1.9 310 0.65



Dimension of the brushless motor:


12V DC Brushless Gear Motor Automatic Window Automatic Door Micro Motor 0
 12V DC Brushless Gear Motor Automatic Window Automatic Door Micro Motor 1

12V DC Brushless Gear Motor Automatic Window Automatic Door Micro Motor 2
