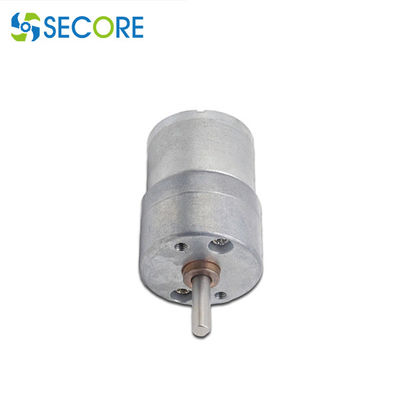

27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor

Name: 27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor
Brand: SECORE
SKU: BL2418-27GB
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (153 reviews)

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	50pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Guangdong	Brand Name:	SECORE
Certification:	RoHS	Model Number:	BL2418-27GB

Detail Information
Motor Dimension:	OD24*L18（mm）	Speed Rated:	2.9rpm~2525rpm
Free Load Speed:	3.7rpm~315rpm	Rated Torque:	0.12kg.cm
Rated Current:	0.16mA	Motor Type:	27mm Spur Gear Motor
Typical Application:	Electric Anti-theft Lock, Automatic Lock, Robot	Shaft Diameter:	3.5mm Or Customize
High Light:	27mm Spur Gear Motor , Micro DC Spur Gear Motor , Brush Deceleration Lock Gear Motor

Product Description

Anti-theft Lock Gear Motor 27mm Micro DC Spur Gear Motor Brush Deceleration Motor

Secore gear motor 6V 12v 24v small brush gear motor 2418-27GB

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
MODEL	VOLTAGE	SPEED RPM	CURRENT mA	SPEED RPM	TORQUE Kg.cm	CURRENT mA	Output W	TORQUE Kg.cm	CURRENT A
DC1824-27GB	6	6000	0.033	4800	0.01	0.16	0.5	0.045	0.55
DC1824-27GB	12	9200	0.033	8400	0.005	0.1	0.44	0.051	0.51
DC1824-27GB	24	8000	0.02	6400	0.01	0.07	0.67	0.045	0.19

Reduction stage	4	5	6	7	8
Reduction ratio	19K, 27K	36K, 52K, 76K, 94K	100K, 145K, 210K	278K, 402K, 583K	771K, 1119K, 1621K
gearbox length L	18	20	22	24	26
Gearbox efficiency	65%	59%	53%	48%	43%

Dimension of the brushless motor:

27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor 0

Customized spares parts

1. Voltage, current, speed and torque.
2. Shape of shaft: "D" "Round" "Flat" "Hexagon Axis" "Square axis", shaft dimension
3. Bearing: ball bearing, oil bearing
4. Materials of shell: plastic metal etc
6. Optional equip with reducer, braker, encoder, controller, gearhead, driver etc
