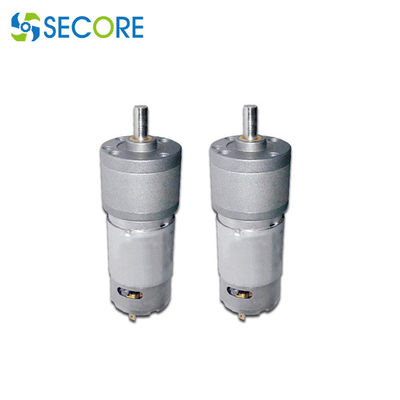

4NM Torque Gear Reducer Motor 12V Safety Box Spur Gear Motor For Lift Rod

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: RoHS Model Number: BL2946-30GB

Detail Information

395 Motor Dimension: 39*46mm Speed Rated: 4rpm Or Per Customized
Free Load Speed: 5.1rpm Or Customized Rated Torque: 39kg.cm / 3.9N.m
Rated Current: 0.3A Motor Type: 4N.m High Torque Spur Gear Deceleration Motor
Typical Application: Lift Rod, Telescoping Mast, Safty Box Shaft Diameter: 5.5mm Or Customize
High Light:

4NM Gear Reducer Motor

,

Lift Rod Gear Reducer Motor

,

Safety Box Spur Gear Motor

Product Description

4N.M Torque Gear Reducer Motor For Lift Rod 12V 395 Safety Box Spur Gear Motor

Secore gear motor 6V 12v 24v small brush gear motor 2418-27GB



MODEL VOLTAGE NO LOAD WITH LOAD STALL
SPEED
RPM
CURRENT
max A
SPEED
RPM
TORQUE
Kg.cm
CURRENT
max A
Output
W
TORQUE
min Kg.cm
CURRENT
max A
DC2946-30GB 12 3000 0.08 2100 0.1 0.45 2.2 0.3 1.03
DC2946-30GB 12 4500 0.12 3600 0.1 0.69 3.77 0.45 2.4
DC2946-30GB 12 6000 0.16 5200 0.1 0.93 5.45 0.677 4.5
DC2946-30GB 24 3000 0.05 2100 0.089 0.2 1.98 0.27 0.42
DC2946-30GB 24 4500 0.06 3480 0.089 0.2 3.28 0.356 0.98
DC2946-30GB 24 6000 0.07 5000 0.1 0.43 5.24 0.54 1.73





Reduction stage 4 5 6 7 8
Reduction ratio 37K 88K, 114K, 131K 206K, 265K, 305K, 341K, 392K, 450K 619K, 711K, 796K, 914K, 1049K, 1548K 1857K, 2132K, 2387K, 2447K
gearbox length L 22.2 24.8 27.4 30 32.6
Gearbox efficiency 65% 59% 53% 48% 43%




Dimension of the brushless motor:


4NM Torque Gear Reducer Motor 12V Safety Box Spur Gear Motor For Lift Rod 0
