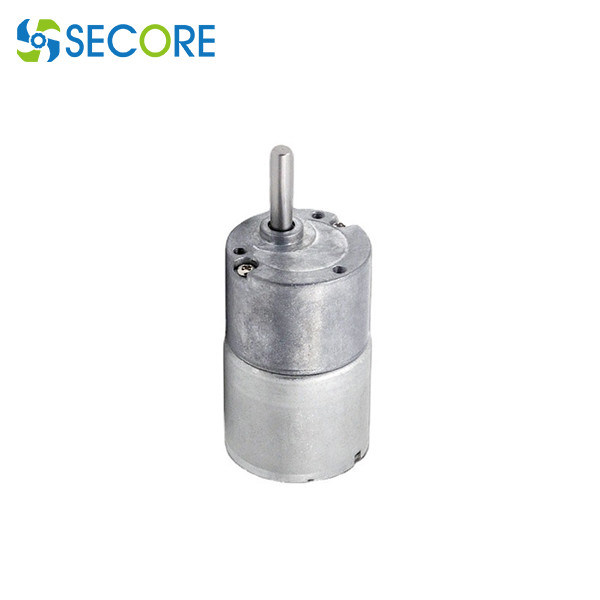

Four Wheel Toy 24V Gear Motor 33rpm High Torque Spur Gear Deceleration Motor

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: RoHS Model Number: DC3530-33GB

Detail Information

Motor Size: 35*30mm ( Diameter * Length ) Gear Ratio: 1:50
Rated Voltage: 24V Speed Rated: 96rpm Or Per Customized
Free Load Speed: 120rpm Or Customized Rated Torque: 2.4kg.cm /0.24N.m
Rated Current: 0.31A Motor Type: 33rpm High Torque Spur Gear Deceleration Motor
Typical Application: Four-wheel Toy, Kids Toy, Car Toy Shaft Diameter: 4.5mm Or Customize
High Light:

High Torque 24V Gear Motor

,

Toy 24V Gear Motor

,

33rpm toy Gear Motor

Product Description

Four-Wheel Toy 24V Gear Motor 5V Smart Appliance High Torque Driving Motor

Secore gear motor 12v 24v small brush reducing motor 3530-33GB



MODEL VOLTAGE NO LOAD WITH LOAD STALL
SPEED
RPM
CURRENT
max A
SPEED
RPM
TORQUE
Kg.cm
CURRENT
max A
Output
W
TORQUE
min Kg.cm
CURRENT
max A
DC3530-33GB 12 3000 0.023 2250 0.04 0.17 0.5 0.144 0.4
DC3530-33GB 12 4500 0.045 3600 0.046 0.211 1.7 0.207 1.06
DC3530-33GB 12 6000 0.054 4800 0.062 0.367 3.1 0.279 1.84
DC3530-33GB 24 3000 0.02 2400 0.045 0.05 1.1 0.202 0.21
DC3530-33GB 24 4500 0.033 3600 0.05 0.114 1.9 0.225 0.48
DC3530-33GB 24 6000 0.03 4800 0.076 0.2 3.8 0.342 0.84



Reduction stage 3 4 5 6 7
Reduction ratio 20K 50K 125K 312.5K 781K
gearbox length L 17.7 19.9 22.2 24.4 26.7
Gearbox efficiency 73% 65% 59% 53% 48%


Dimension of the spur gear motor:


Four Wheel Toy 24V Gear Motor 33rpm High Torque Spur Gear Deceleration Motor 0


BLDC Motor Applications:



With high efficiency and controllability, and long lifespans, brushless motor are widely used in continuously operating equipment. They have long been used in air conditioners, washing machines, and many consumer electronics, also used to drive hard disk drives, and their durability allows the drives to operate reliably over long periods of time, while their power efficiency helps reduce energy in this increasingly important area.; more recently, they are applied in fans, where their high efficiency helps reducing power consumption significantly.



They are also used to drive vacuum machines. In one case, a change in the control program resulted in a huge jump in speed—an example of the highest controllability these motors offer.
