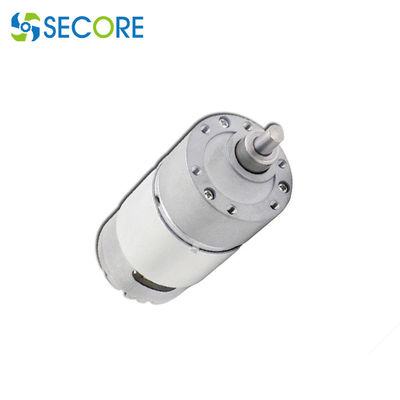

Low Speed 37mm Brush Gear Reducer Motor For Smart Car Toy

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: RoHS Model Number: DC3650-37GB

Detail Information

Motor Size: 36*50mm ( Diameter * Length ) Gear Ratio: 1:122
Rated Voltage: 24V Speed Rated: 39rpm Or As Request
Free Load Speed: 49rpm Or Customized Rated Torque: 12kg.cm /1.2N.m
Rated Current: 0.8A Motor Type: 545 Motor 24V Gear Motor
Typical Application: Smart Toy, Wheel Toy, Smart Car Toy Shaft Diameter: 5.5mm Or Customize
High Light:

Brush Gear Reducer Motor

,

24V Gear Reducer Motor

,

37mm Brush Gear Motor

Product Description

Factory Direct Supply Low Speed 37mm Gear Reducer Brush Motor For Smart Car Toy

Secore spur gear motor 12v 24v 3650-37GB



Reduction stage 2 3 4 5 6 7
Reduction ratio 6K, 8K, 10K 20K, 30K 61K, 90K 104K, 122K, 184K, 270K 311K, 552K, 414K, 810K 1243K, 1656K, 2430K
gearbox length L 18 21.5 24 26.5 29 31.5
Gearbox efficiency 81% 73% 65% 59% 53% 48%



MODEL VOLTAGE NO LOAD WITH LOAD STALL
SPEED
RPM
CURRENT
max A
SPEED
RPM
TORQUE
Kg.cm
CURRENT
max A
Output
W
TORQUE
min Kg.cm
CURRENT
max A
DC3650-37GB 12 3000 0.12 2400 0.112 0.282 2.8 0.5 1.2
DC3650-37GB 24 3000 0.092 2400 0.086 0.229 2.2 0.387 0.97
DC3650-37GB 24 6000 0.192 4800 0.172 0.765 8.7 0.77 3.25



Dimension of the spur gear motor:


Low Speed 37mm Brush Gear Reducer Motor For Smart Car Toy 0


What is a DC gear motor?


A gear motor is an integrated combination of a motor and a gearbox. Adding a gear head to the motor reduces speed while increasing torque output. The key parameters of a gear motor are speed (rpm), torque (kg.cm) and efficiency (%). In order to choose the most suitable gear motor for your application, we ought to calculate the load, speed and torque requirements of the application. Secore offers a wide range of planetary, spur and worm gear motors to meet all application requirements. Most of our DC motors can be equippied with gearboxes, giving you an efficient gear motor solution.
