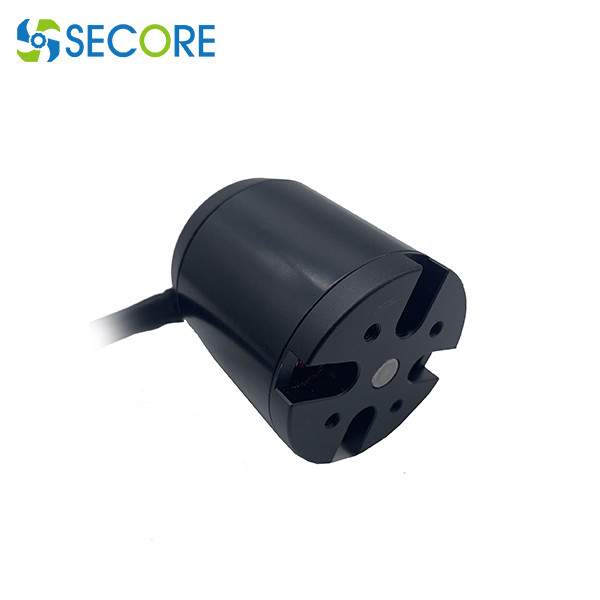

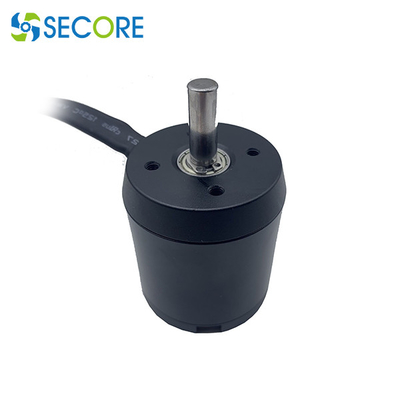

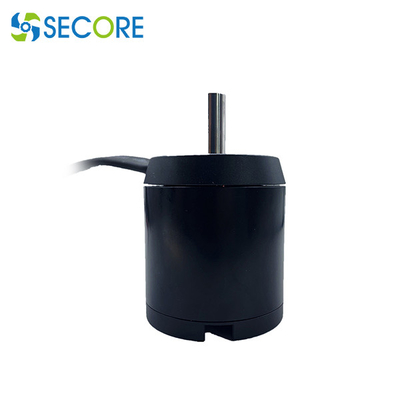

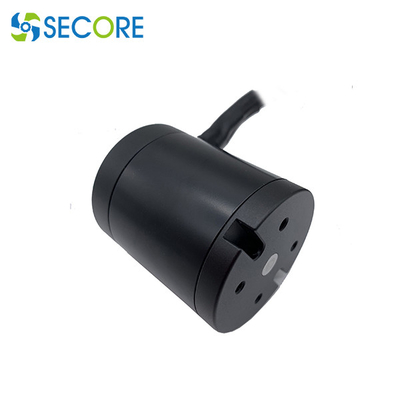

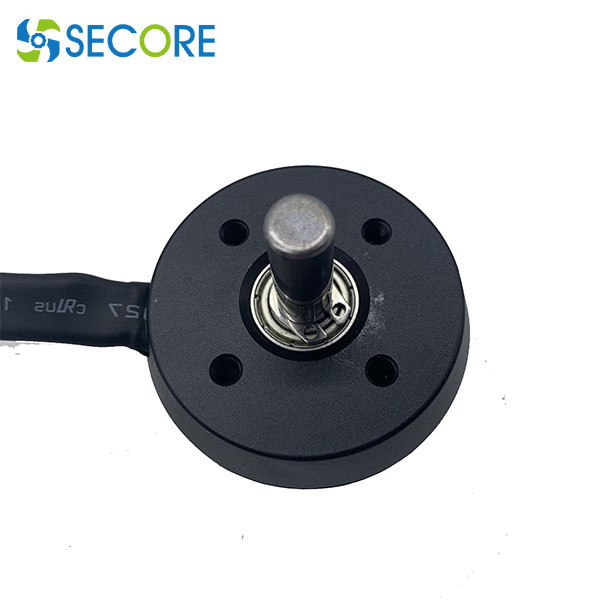

1800W Waterproof Brushless Motor Underwater IP65 Anti Corrosion DC BLDC Motor

1800W Waterproof Brushless Motor Underwater IP65 Anti Corrosion DC BLDC Motor
1800W Waterproof Brushless Motor Underwater IP65 Anti Corrosion DC BLDC Motor 1800W Waterproof Brushless Motor Underwater IP65 Anti Corrosion DC BLDC Motor 1800W Waterproof Brushless Motor Underwater IP65 Anti Corrosion DC BLDC Motor 1800W Waterproof Brushless Motor Underwater IP65 Anti Corrosion DC BLDC Motor

1800W Waterproof Brushless Motor Underwater IP65 Anti Corrosion DC BLDC Motor

Product Details:
Place of Origin: SHENZHEN
Brand Name: SECORE
Certification: CE ROHS
Model Number: BLD-5065
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiated The Price
Packaging Details: 100pcs per carton or as request
Delivery Time: 10-12 working days
Payment Terms: T/T, D/A
Supply Ability: 1000pcs per month
Contact Now

Detail Information
Working Voltage: 24v-36v Compatible KV: 270-400KV
Max Power: 1800W Max Current: 80A
Free Load Current: 1-2A Torque: 1.2-2.3N.m
Motor Type: Anti-corrosion Underwater 200M Bldc Motor Typical Application: Hydraulic Oil Pump, Model Excavation Machinery
High Light:

1800W Waterproof Brushless Motor

,

Waterproof Brushless Motor IP65

,

Anti Corrosion DC BLDC Motor

Product Description

High Power 1800W Waterproof Brushless Motor Underwater IP65 IP68 Anti-Corrosion Dc Motor Bldc Motor



Specification of BLD-5065 Waterproof IP65 IP68 Brushless DC out runner Motor :



1. Voltage Range: 24-36V

2. speed Range: 270KV-400KV

3. Application: Motor for hydraulic oil pump, Model Excavation Machinery motor , underwater device motor, underwater equipment motor



Motor diameter 50mm motor length 56mm
Shaft diameter 8mm shaft length 22mm
Shaft type round or custom made
mounting holes shaft end 30*30mm M4
rotor end 30*30mm M4
Net weight 432g
Max power 1800W Hall angle 60°
Max current 80A Voltage range 24-36V
Free load current 1-2A KV 270-400KV
Torque 1.2-2.3N.m Free-load speed
rpm		 6480-9600





1800W Waterproof Brushless Motor Underwater IP65 Anti Corrosion DC BLDC Motor 01800W Waterproof Brushless Motor Underwater IP65 Anti Corrosion DC BLDC Motor 1
