24V 160KV E Scooter Bldc Motor With Hall Sensor , Pruner Outrunner Brushless Motor
24V 160KV E Scooter Bldc Motor With Hall Sensor , Pruner Outrunner Brushless Motor 24V 160KV E Scooter Bldc Motor With Hall Sensor , Pruner Outrunner Brushless Motor 24V 160KV E Scooter Bldc Motor With Hall Sensor , Pruner Outrunner Brushless Motor
Contact Now

24V 160KV E Scooter Bldc Motor With Hall Sensor , Pruner Outrunner Brushless Motor

Minimum Order Quantity : 20 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 10000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-6385

Detail Information
Work Voltage: 24V-48V KV: 80-400rpm/v
Rated Torque: 2.5-3.7N.m Motor Sizes: 63*85mm ( Diameter*length)
Shaft: 10mm*30mm Max Current: 150A
Weight: 950g Typical Application: E-scooter, Pruner, Trimmer
High Light:

24V E Scooter Bldc Motor

,

160KV E Scooter Bldc Motor

,

Pruner Outrunner Brushless Motor

Product Description

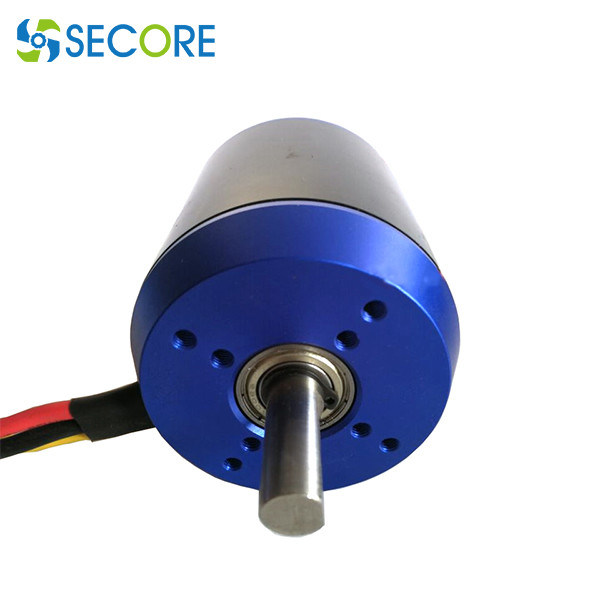

High Quality 24V 160KV E-Scooter Bldc Motor With Hall Sensor Outrunner Brushless Motor For Pruner



Specification of Secore Sensored BLS6385 Brushless outrunner Motor for pruner :



BLS-6385 brushless motor, suitable for E-scooter, skateboard, E-bike, hedge trimmer, pruner etc.

Motor diameter: 63mm height 85mm, Shaft diameter 10mm

Voltage: 24-48V

KV value: 160KV or custom made

Top and bottom cover: 6063-T6 aluminum alloy, Insulating, non-conducting, anodized, very fine heat-resistance.

Hall PCB board: The motor position can be detected when starting, so that the motor starts smoothly and quickly;
Detect 120℃ temperature;
Silicon steel: thickness can be 0.2mm, the thinner the silicon wafer, the less motor consumption



Motor Model number BLS-6385 Dimension 63*85mm
( diameter * length )
Motor type brushless motor Rotor outer rotor
Motor Name scooter motor Hass sensor yes ( optional )
Voltage Range 24-48v KV(RPM/V) 80-400 or custom
max lipo 6-13S Output shaft 10mm OD
Max power 3200W weight 0.95kg



24V 160KV E Scooter Bldc Motor With Hall Sensor , Pruner Outrunner Brushless Motor 0 24V 160KV E Scooter Bldc Motor With Hall Sensor , Pruner Outrunner Brushless Motor 1
24V 160KV E Scooter Bldc Motor With Hall Sensor , Pruner Outrunner Brushless Motor 2        24V 160KV E Scooter Bldc Motor With Hall Sensor , Pruner Outrunner Brushless Motor 3



24V 160KV E Scooter Bldc Motor With Hall Sensor , Pruner Outrunner Brushless Motor 4
