15000rpm 250W Brushless Motor , Custom Made EC Motor For Agriculture Sprayer

Minimum Order Quantity : 20 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 10000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-5055

Detail Information

Rated Voltage: 24-36v KV Value: 200-400KV
Free Load Speed: 4000~15000RPM Rated Torque: 7N.m-10N.m
Motor Dimension: 50*55mm ( Diameter*length) Shaft: 8mm*23.8mm
Typical Application: Glider, Power Tool, Sprayer, Grass Mower Customization: Shaft, Speed, Torque, Driver
High Light:

15000rpm Brushless EC Motor

,

250W Brushless EC Motor

,

Agriculture Sprayer Outer Rotor BLDC Motor

Product Description

15000rpm 250W Brushless Motor Custom Made EC Motor For Agriculture Sprayer



Specification of Secore BLS5055 Waterproof Brushless outrunner Motor :



BLS-5055 fully enclosed brushless motor, suitable for model aircraft, lawn mowers, power tools, cutting branches, scooter off-road vehicles

Motor diameter: 50MM height 55Mmm, Shaft diameter 8mm

Voltage: 24-36V

Speed: 24V-6480 rpm, 36V-9720 rpm

KV value: 200-400KV

Performance parameters can be customized according to customer requirements



Motor Model number BLS-5055 Dimension 50*55mm
( diameter * length )
Motor type brushless motor Rotor outrunner rotor
Motor Name sprayer motor, mower motor Protection level upto IP68
Voltage Range 24-36v KV(RPM/V) 200kv-400kv
RPM 4000rpm-15000rpm Output shaft 8mm OD
Rated torque 8N.m - 10N.m feature anti-dust, waterproof



Dimension:

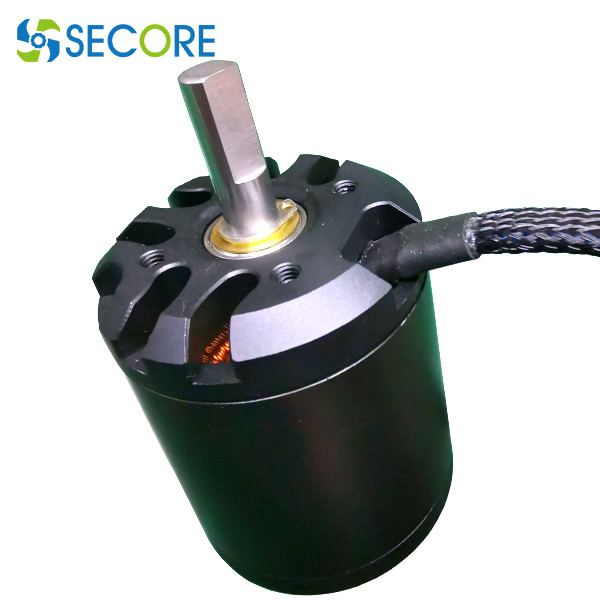

15000rpm 250W Brushless Motor , Custom Made EC Motor For Agriculture Sprayer 0

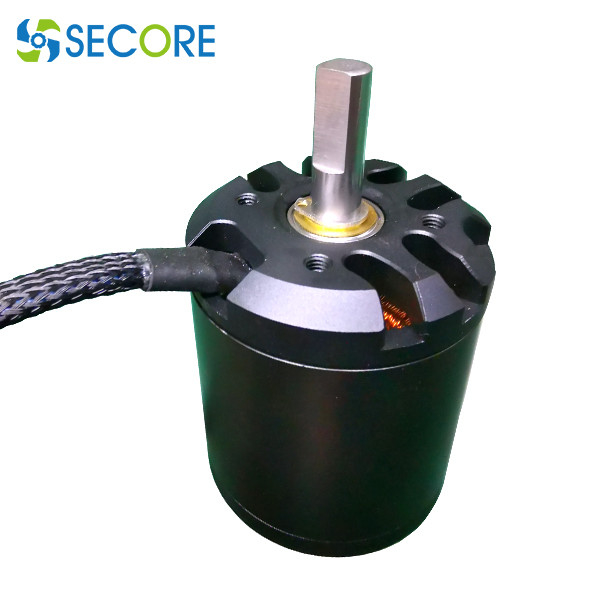

15000rpm 250W Brushless Motor , Custom Made EC Motor For Agriculture Sprayer 1
