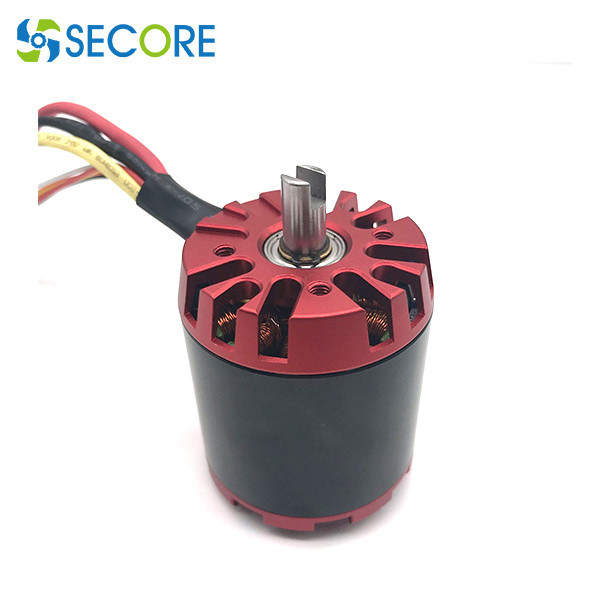

Grooved Shaft 270KV Outer Rotor Bldc Motor For Hydraulic Oil Pump

Minimum Order Quantity : 20 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 10000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-5066

Detail Information

Rated Voltage: 24V-36V Rated Torque: 1.2-2.3N.m
KV: 260V-400KV Free Load Speed: 6240-9600rpm
Motor Sizes: 50*60m ( Diameter*length) Output Shaft: 8*14mm
Max Current: 80A Typical Application: Hydraulic Oil Pump, Grass Mower
High Light:

270KV Outer Rotor Bldc Motor

,

Grooved Shaft Outer Rotor Bldc Motor

,

Hydraulic Oil Pump Bldc Motor

Product Description

Grooved Shaft 270KV 1500W Outer Rotor Bldc Motor For Hydraulic Oil Pump



Specification of Secore BLS5066 Brushless outrunner Motor for hydraulic oil pump :



Motor Model number BLS-5066 Sizes 50*60mm
( diameter * length )
Motor type brushless motor Rotor external rotor
Motor Name 1200W brushless motor for trimmer Hass sensor NO ( optional )
Working Voltage 24V-36V KV(RPM/V) 260-400KV
max lipo 6S-10S Output shaft 8mm OD
Rated power 1200W to 1800W weight 0.42kg





Grooved Shaft 270KV Outer Rotor Bldc Motor For Hydraulic Oil Pump 0 Top/bottom cover 6063-T6 aluminum alloy, Insulating, non-conducting, anodized, very fine heat-resistance.
            Grooved Shaft 270KV Outer Rotor Bldc Motor For Hydraulic Oil Pump 1 magnet
NdFeB N45SH, 14 poles, strong magnetism.
loctitie 326 structural adhesive, battle hardened, prevents magnets from falling apart and prolongs motor life.
            Grooved Shaft 270KV Outer Rotor Bldc Motor For Hydraulic Oil Pump 2 silicon steel thickness can be 0.2mm, the thinner the silicon wafer, the less motor consumption
           Grooved Shaft 270KV Outer Rotor Bldc Motor For Hydraulic Oil Pump 3 stotor Copper wire:
high temperature resistance and high purity oxygen-free copper wire, can withstand 220 ℃ temp. Automatic machine winding, high precision;
Insulating paint coated to prevent the wire from being scattered; Antioxidant, good electrical conductivity.
Hall PCB board:
The motor position can be detected when starting, so that the motor starts smoothly and quickly;
Detect 120℃ temperature
